Achieve Ultimate Fidelity

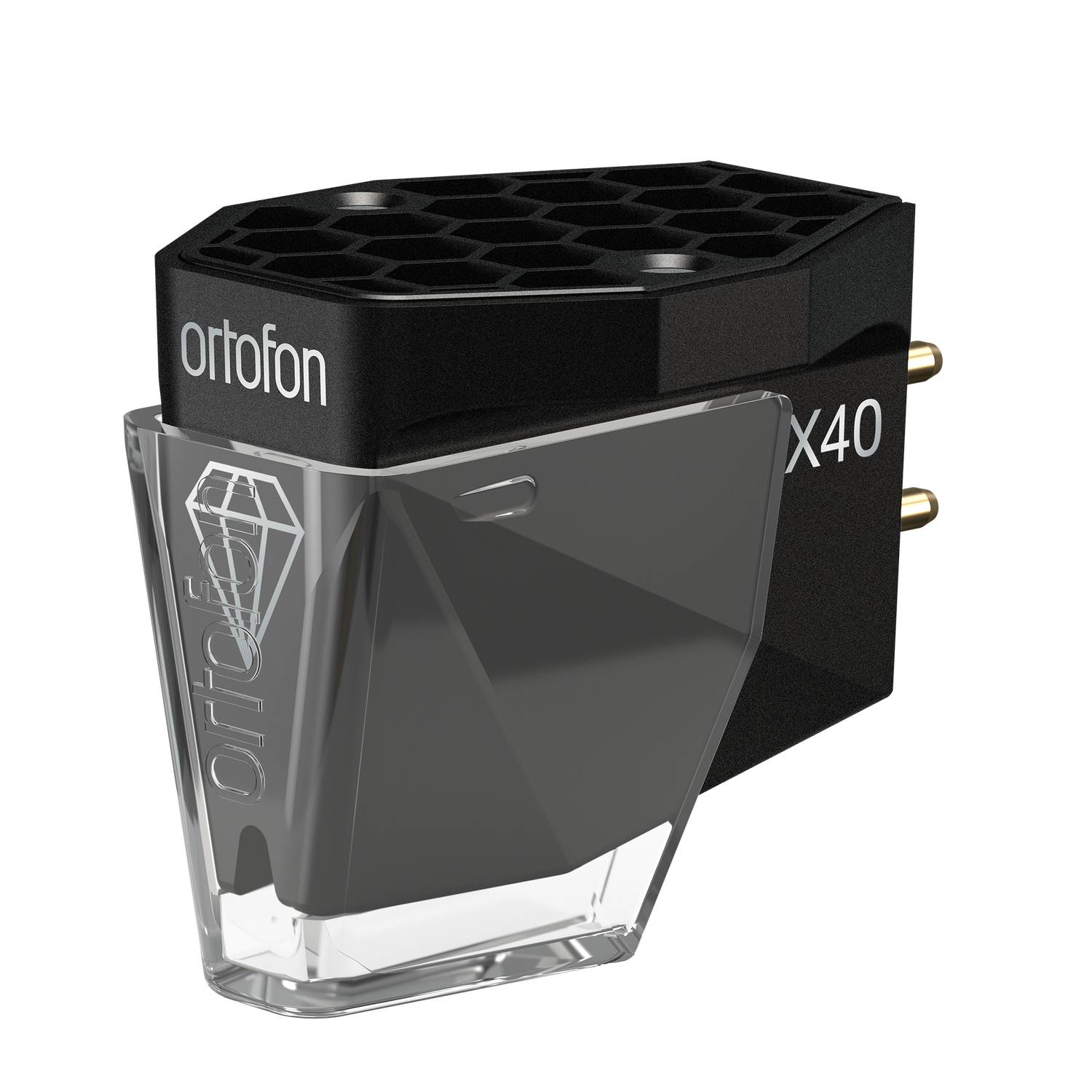

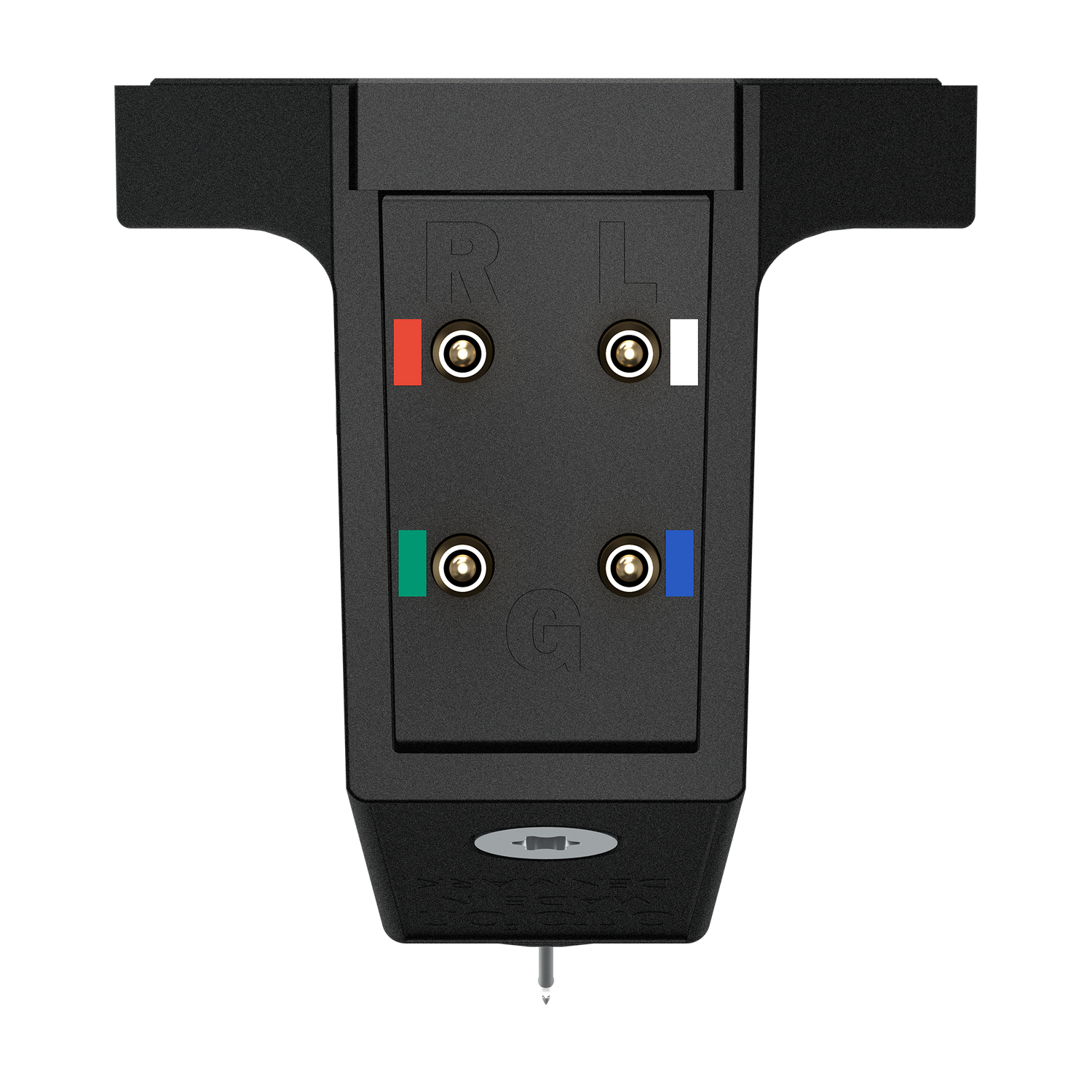

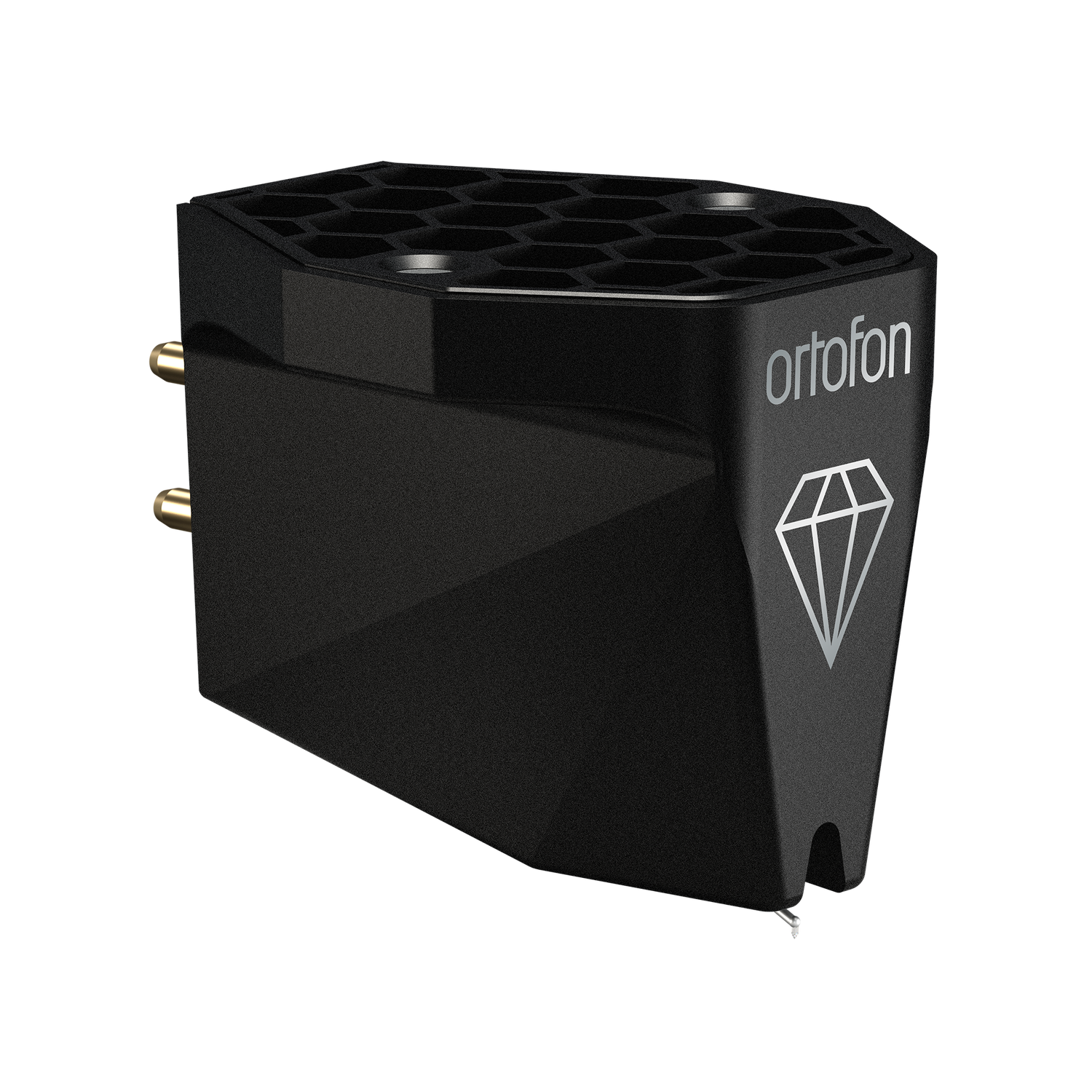

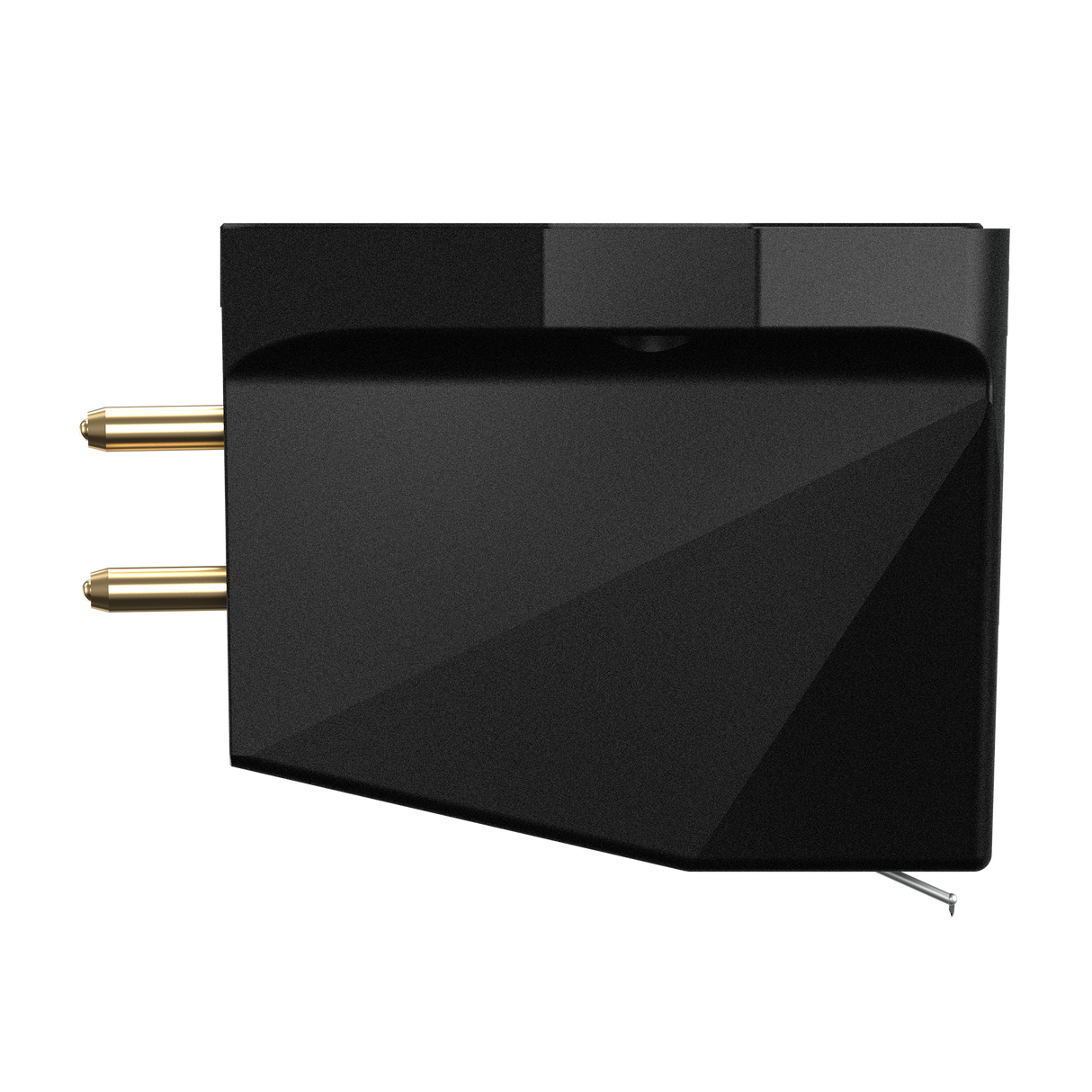

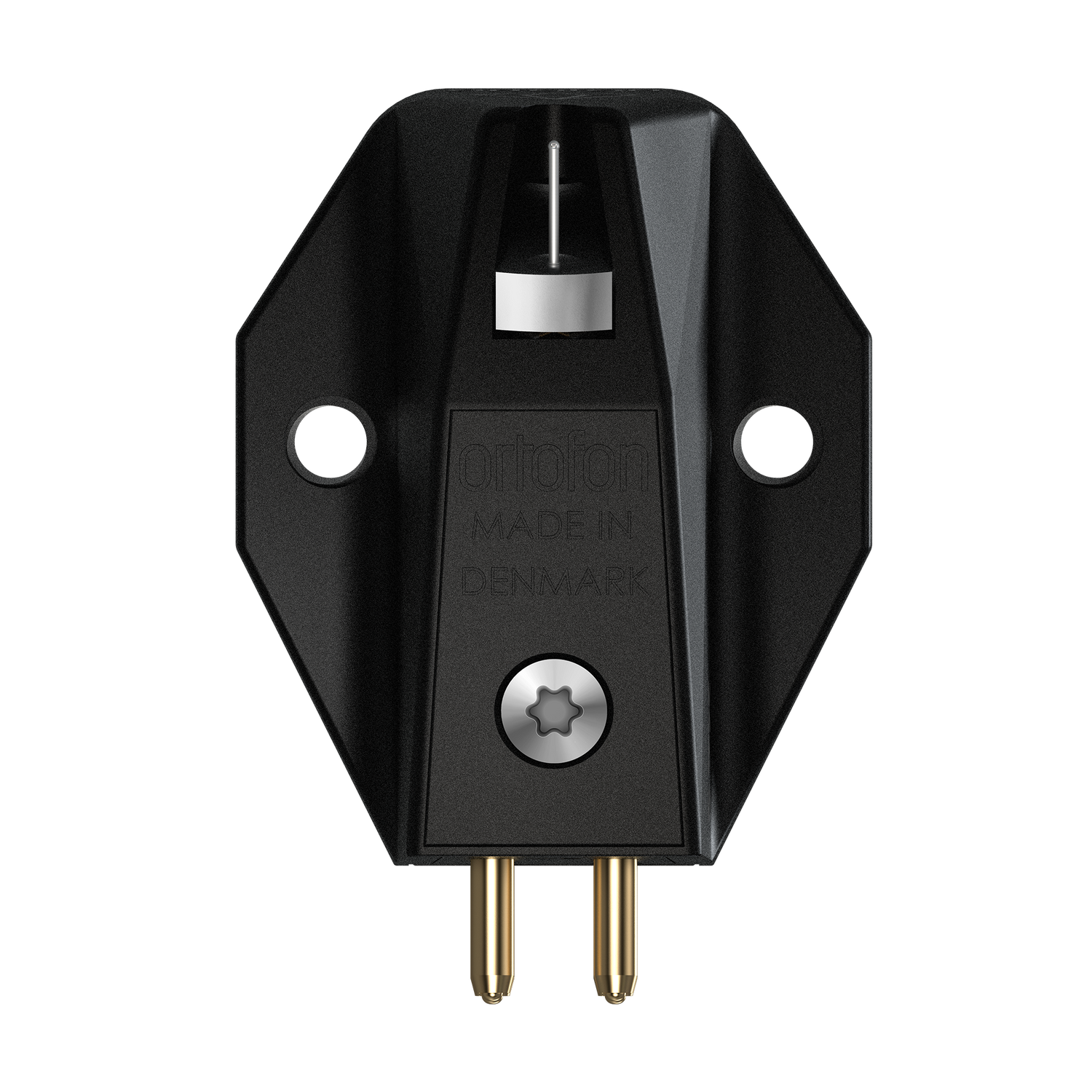

MC X40

MC X40 is the pinnacle of the MC X Series, designed for the most discerning audiophile. Featuring a nude Shibata diamond stylus mounted on a rigid and lightweight boron cantilever, this cartridge provides unparalleled transparency, speed, and responsiveness.

Variants

€999,00
Find nearest dealer

Free Shipping on orders over €80

OverviewFeaturesReviewsSpecifications

A New Benchmark in Analog Perfection

In the world of vinyl playback, the cartridge is where the journey begins. A pivotal point where music rises from the groove and transforms into immersive soundscapes. With the MC X Series, Ortofon sets a new benchmark in MC cartridge design, pushing premium Moving Coil technology to unprecedented levels of performance.

Silver Coils in the Ortofon MC X Phono Cartridge

Exceptional Signal Clarity

/Pure Silver
Coil System

All MC X cartridges feature coils wound with high-purity silver wire. The use of premium materials is to ensure exceptional signal clarity, delivering sound with unmatched precision and preserving every detail without interference.

Maximum Magnetic Efficiency

Magnet system

The MC X Series introduces a newly developed magnet system with a one-piece pole cylinder integrated into a rear magnet yoke. Engineered for maximum magnetic efficiency and paired with pure silver coils, this configuration ensures a clean, powerful signal path that elevates overall performance.

Ortofon_MC_X_Cartridge_Optimized_Magnet_System

Precision Engineering for Unmatched Stability

Custom-Developed Rubber Dampers

In-house produced and developed rubber compounds form the core of the MC X Series’ mechanical damping system. Rubber dampers are essential for controlling the physical movement of the coils, maintaining stability, minimizing unwanted vibrations, and enabling precise coil motion. The result is superior tracking, reduced distortion, and musical accuracy.

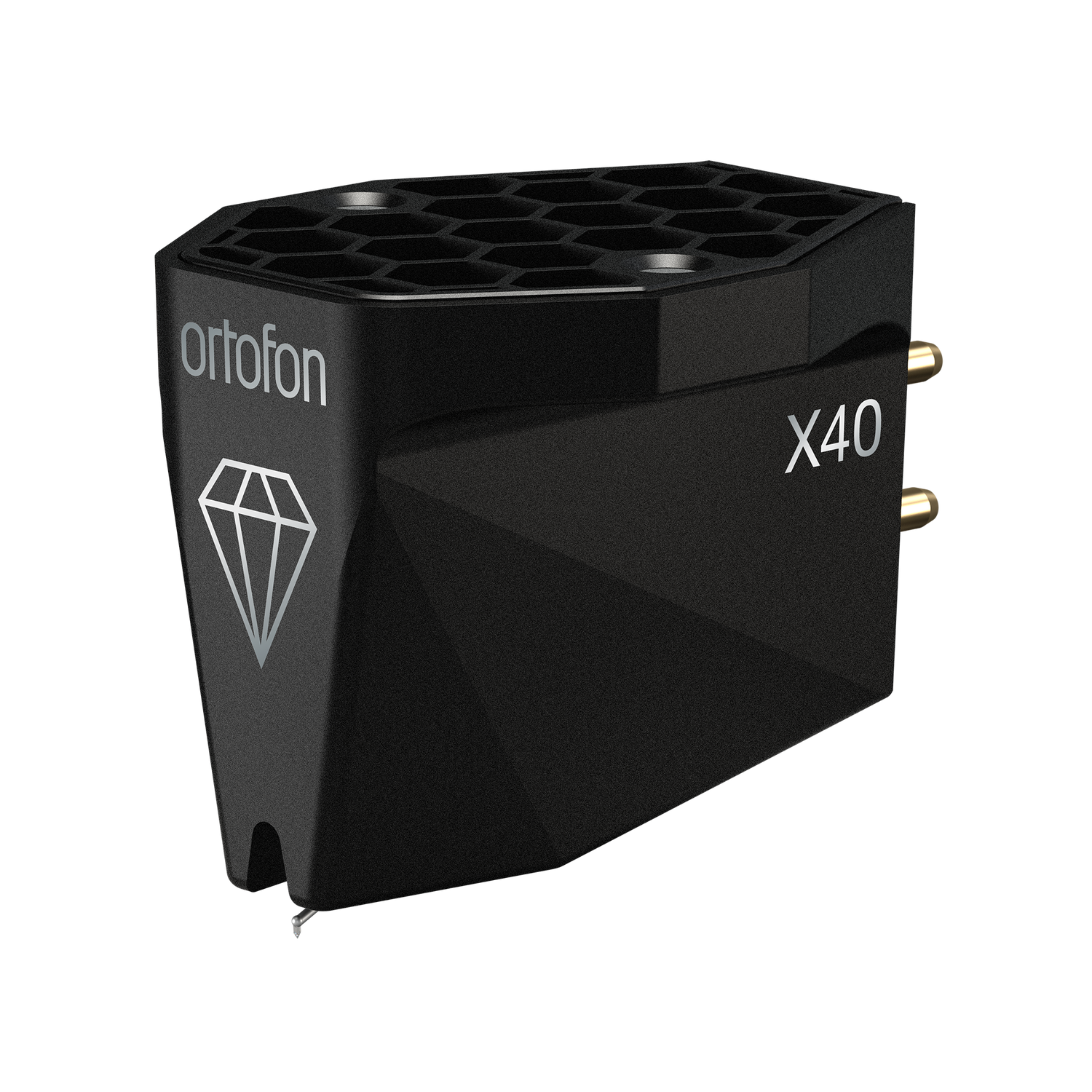

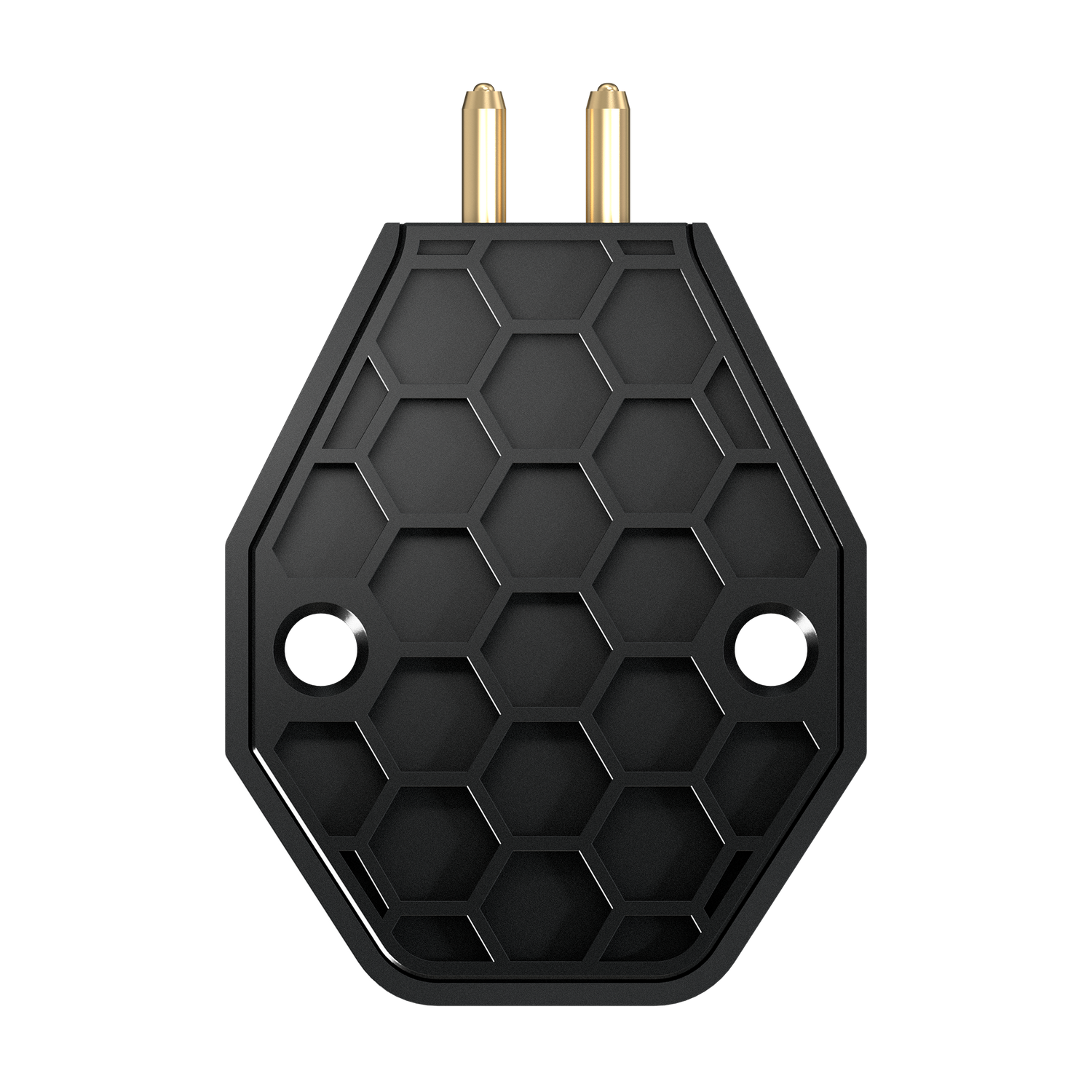

MIM-Molded Honeycomb-Structured Core

Experience the depth.
Hear every detail.

At the core of the MC X Series is an advanced honeycomb-structured stainless-steel frame, created using Metal Injection Molding (MIM) technology. This refined construction ensures superior mechanical stability, providing an ideal foundation for precise and accurate sound reproduction.

After molding and sintering, a Physical Vapor Deposition (PVD) surface treatment is applied to enhance surface appearance and maintain material integrity over time.

MIM-Molded Honeycomb-Structured Core used in Ortofon MC X Phono Cartridge

Modern Elegance with Distinctive Design

The Shape of Sound

The MC X Series embodies modern elegance with a distinctive design that seamlessly complements the tonearm. From afar, its silhouette speaks of minimalist refinement; up close, its intricate detailing reveals craftsmanship at every level. True to Ortofon’s signature aesthetic, it’s a sophisticated fusion of form and function.

Ortofon's "Top Gun" X40 MC X Series Delivers the Sonic Goods

“...the X40 out of the box produced the sonic gut punch and more.

…it was surprisingly easy to "let go" of the 90X and just settle into the X40. That is how good it is, particularly in terms of timbral balance, macrodynamics, image solidity, soundstage depth and three-dimensionality.
This cartridge's sonic performance is world's beyond the old Quintet Black

1/4“

Michael Fremer

Tracking Angle, July 2025

Ortofon's "Top Gun" X40 MC X Series Delivers the Sonic Goods

“The X40 dug out a great deal of what that recording offers in every sonic category but most importantly the presentation was dynamic and exuberant-nothing held back

Its tonal balance was particularly impressive: no mid bass lumps, no upper mid mountains, no edgy bright icy tops. The timbral picture was neither warm nor cool. Just well-balanced and generously presented.

2/4“

Michael Fremer

Tracking Angle, July 2025

Ortofon's "Top Gun" X40 MC X Series Delivers the Sonic Goods

“Image stability was strong, bass was deep, robust and well-controlled. High frequency transients were clean and "present", micro- dynamics were subtly expressed too, which added to the sense of "live". But what impressed most was the overall well-balanced, uncolored timbral presentation. I'm repeating myself but the cartridge's lack of tonal character while at the same time never sounding austere antiseptic or clinical, seriously impressed.

3/4“

Michael Fremer

Tracking Angle, July 2025

Ortofon's "Top Gun" X40 MC X Series Delivers the Sonic Goods

“…this was a cartridge and phono preamp that completely satisfied in every way: black backgrounds, rhythmic dexterity, spatial mono integrity, timbral and especially textural correctness: musicians in a room magically brought to life.
Light on its feet, but not 'lightweight" and always in control, the X40 laid the music out with exceptional flow, harmonic generosity, effortless top to bottom balance and an overall sense of "rightness" that record after record, regardless of musical genre left me satisfied every time.

4/4“

Michael Fremer

Tracking Angle, July 2025

Specifications
  • Channel balance at 1 kHz
    0.5 dB
  • Output voltage at 1 kHz, 5cm/sec
    0.4 mV
  • Channel separation at 1 kHz
    26 dB
  • Frequency response 20 Hz - 20 kHz
    +/-1 dB
  • Compliance, dynamic, lateral
    15 μm/mN
  • Cantilever material
    Boron
  • Stylus type
    Nude Shibata
  • Stylus tip radius
    r/R 6/50 μm
  • Stylus suspensions
    Ortofon exclusive
  • Coil system
    Quad coils
  • Tracking force, recommended
    2.0 grams
  • Internal impedance, DC resistance
    6 Ω
  • Coil wire material
    High-purity silver
  • Cartridge weight
    8.6 grams
  • Recommended load resistance
    > 50 Ω
    • Download user guide
