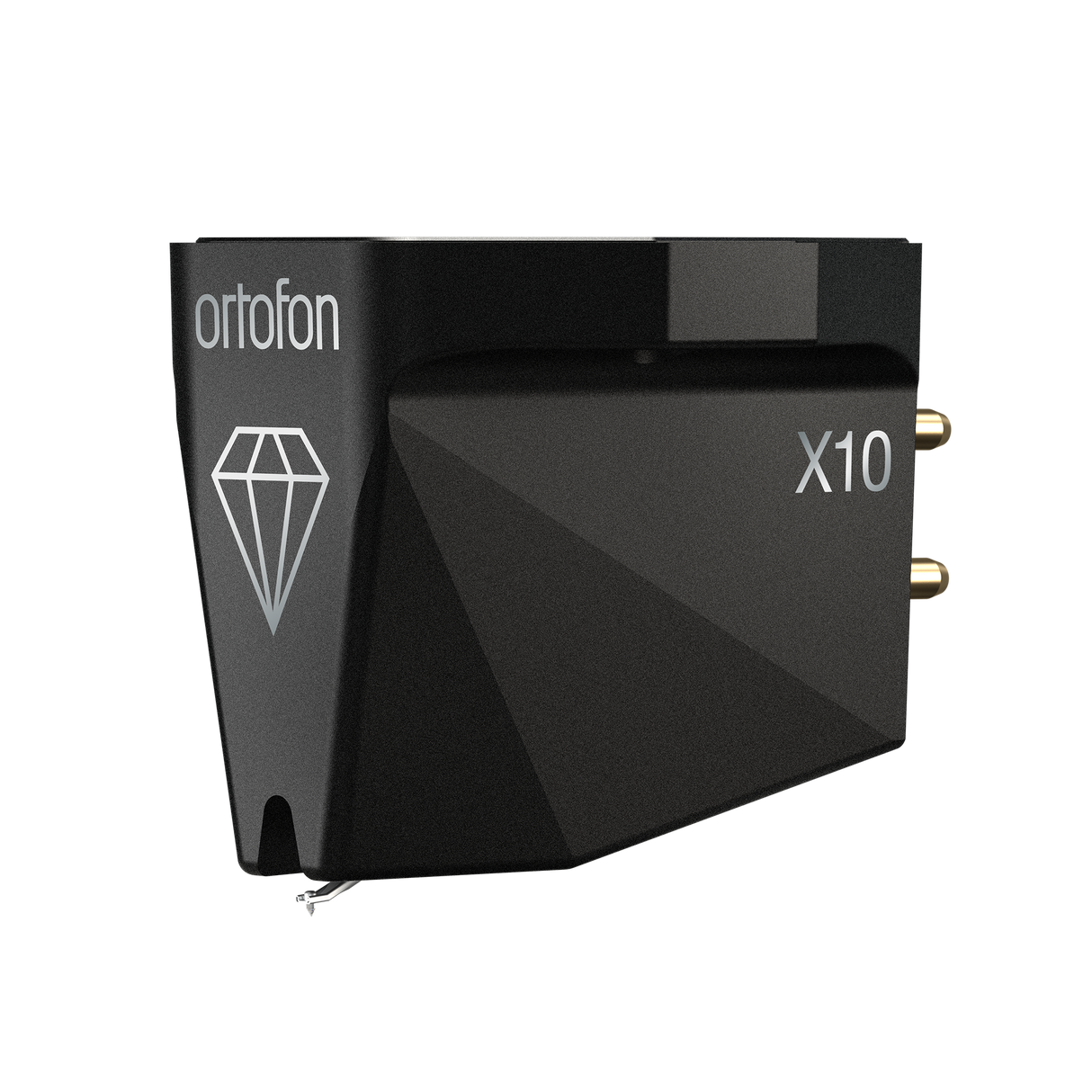

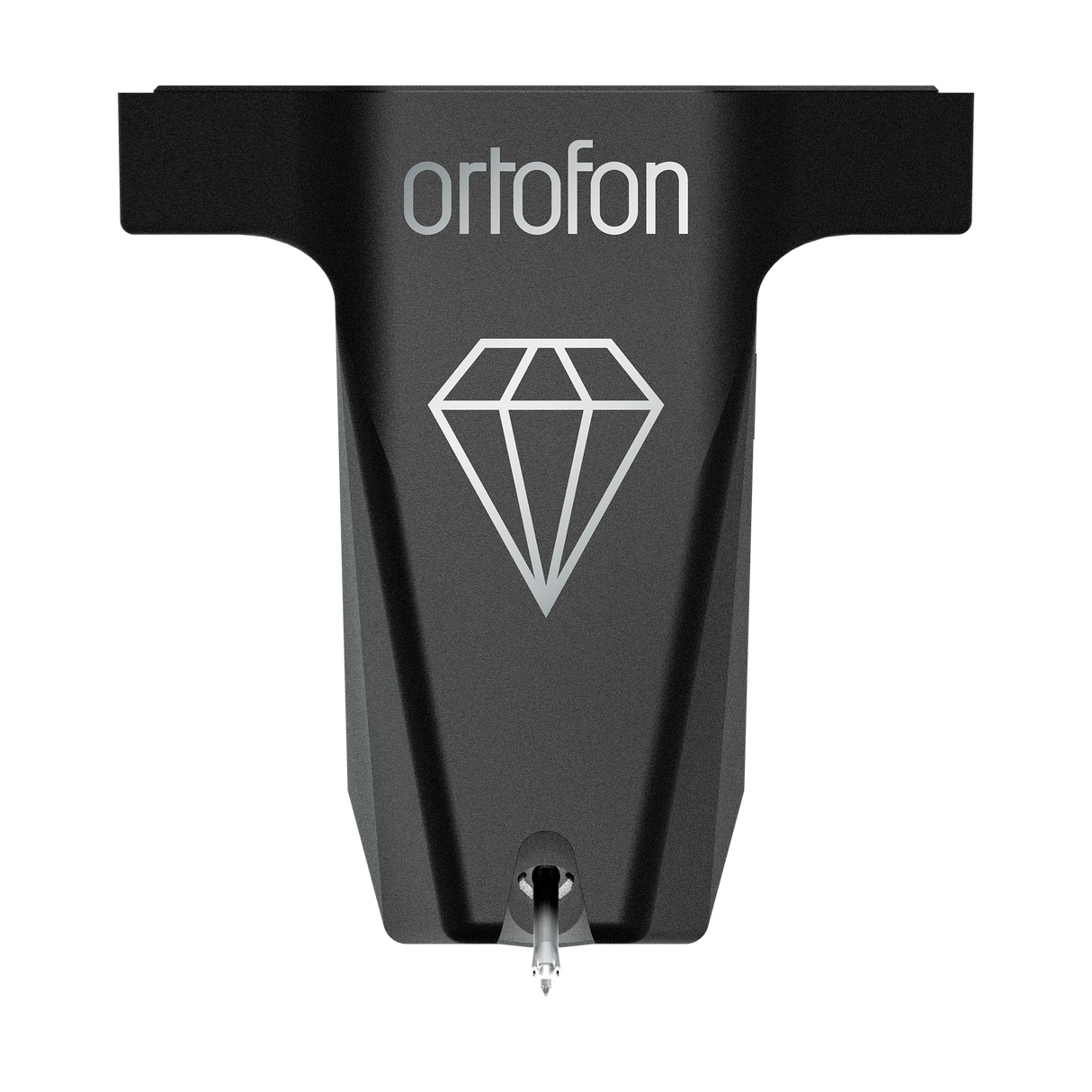

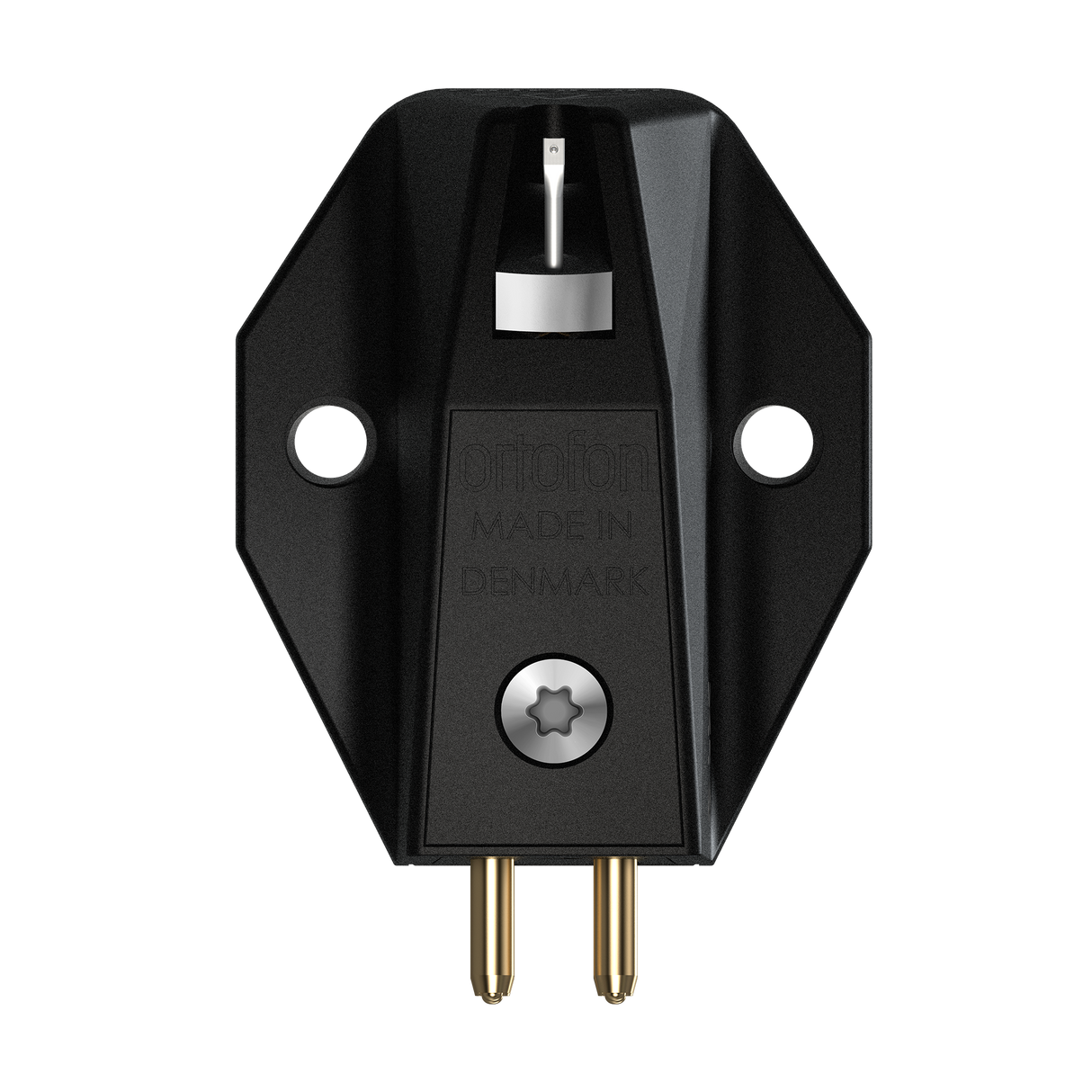

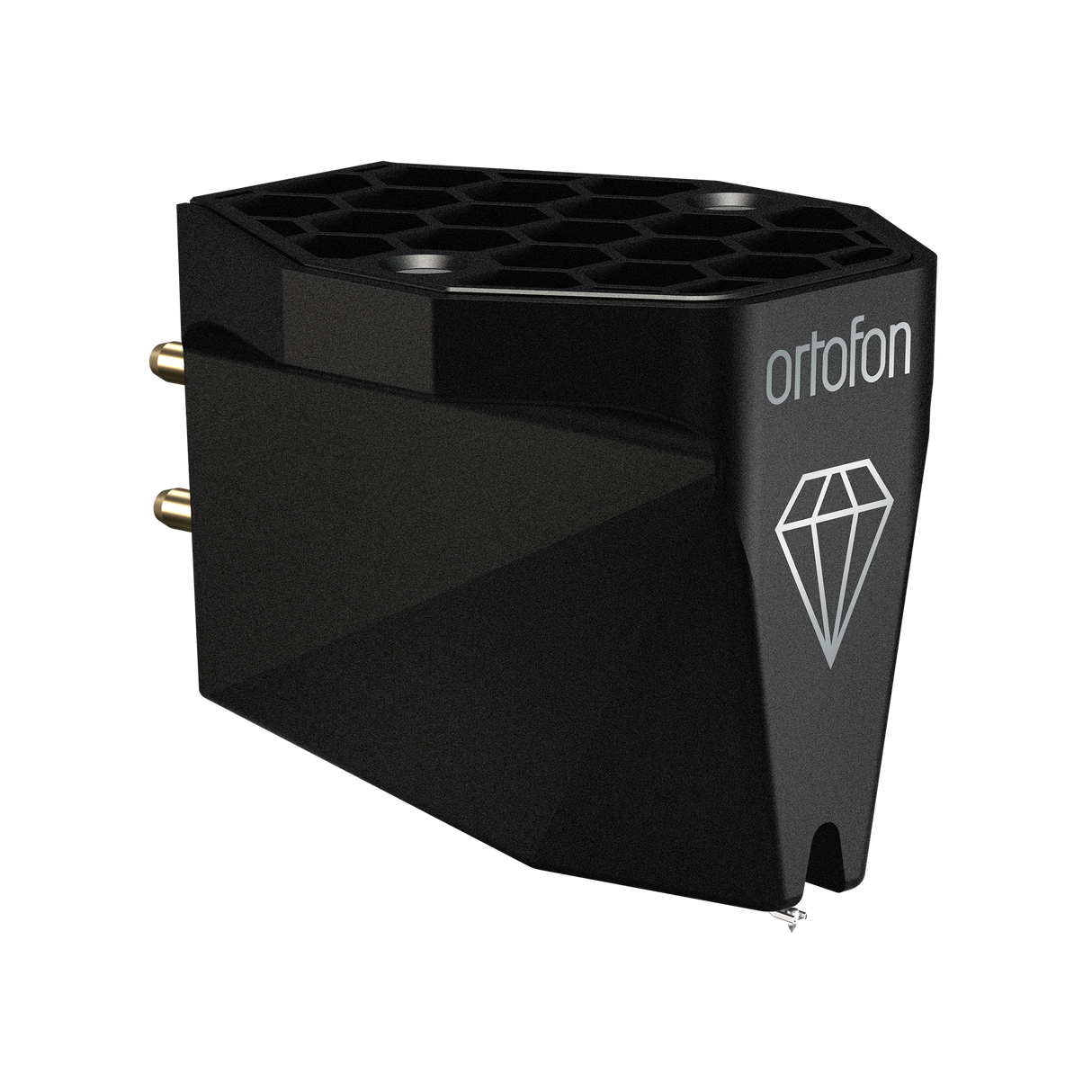

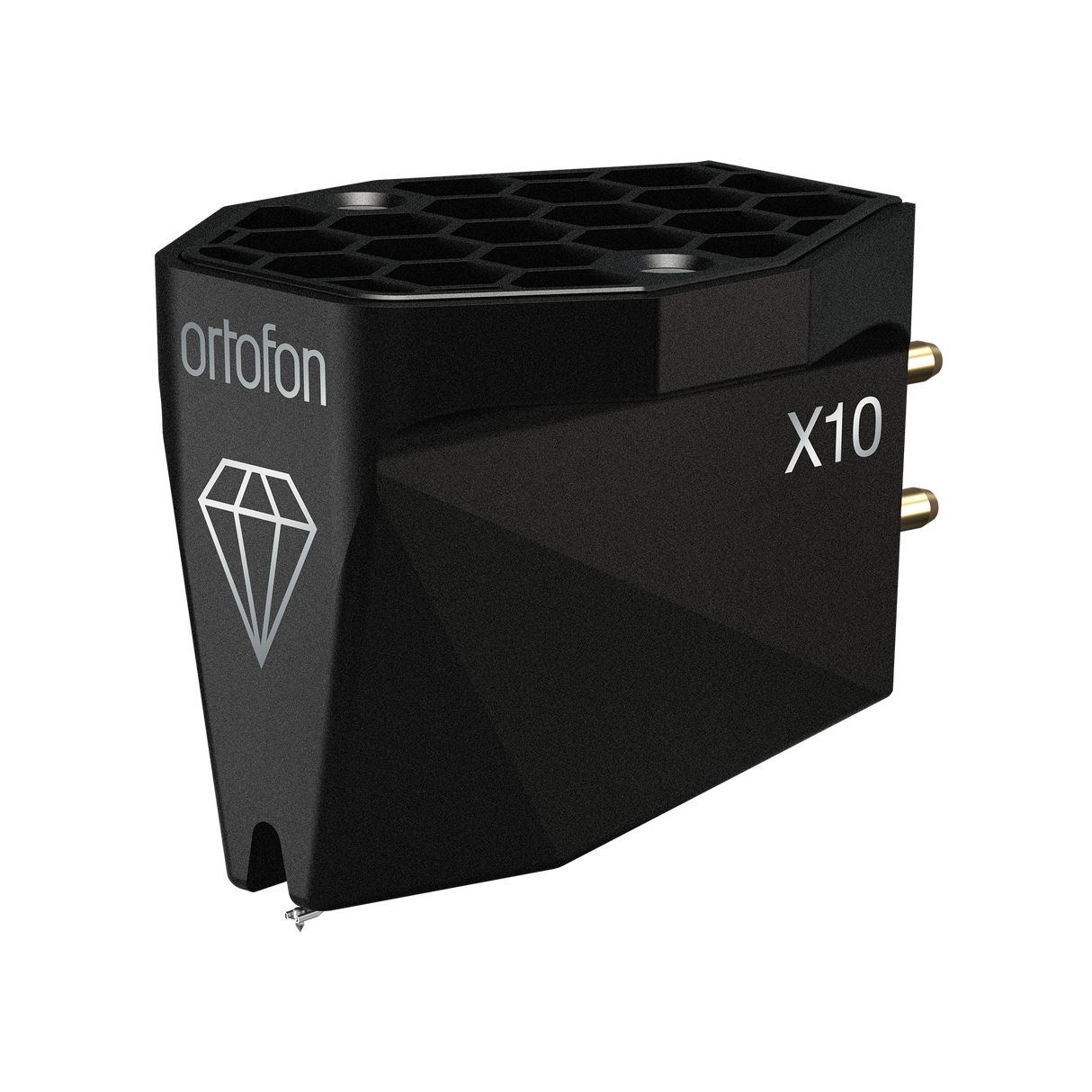

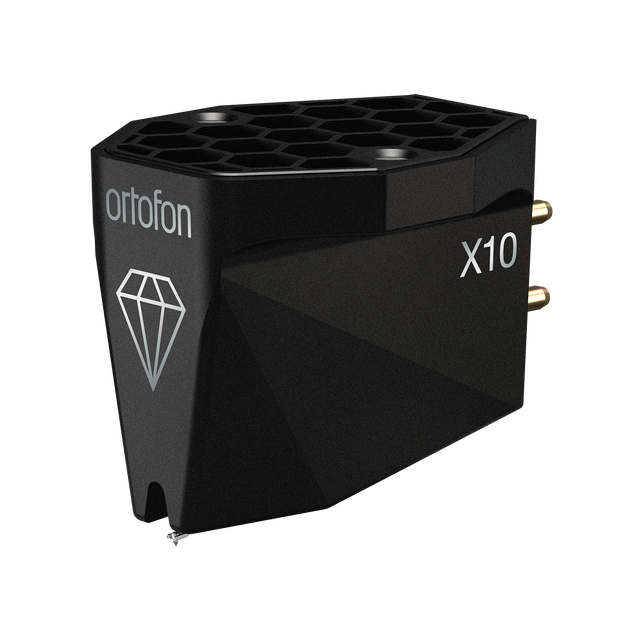

MC X10

MC X10 lays the foundation for high-fidelity sound. Its refined elliptical diamond stylus delivers clarity and precision, bringing your records to life with stunning detail. It’s the perfect starting point for an exceptional audio journey.

Variants

€299,00
Find nearest dealer

Free Shipping on orders over €80

OverviewFeaturesReviewsSpecifications

A New Benchmark in Analog Perfection

In the world of vinyl playback, the cartridge is where the journey begins. A pivotal point where music rises from the groove and transforms into immersive soundscapes. With the MC X Series, Ortofon sets a new benchmark in MC cartridge design, pushing premium Moving Coil technology to unprecedented levels of performance.

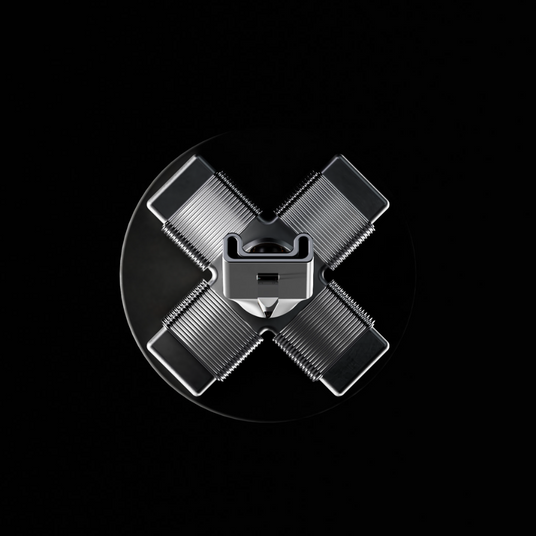

Silver Coils in the Ortofon MC X Phono Cartridge

Exceptional Signal Clarity

/Pure Silver
Coil System

All MC X cartridges feature coils wound with high-purity silver wire. The use of premium materials is to ensure exceptional signal clarity, delivering sound with unmatched precision and preserving every detail without interference.

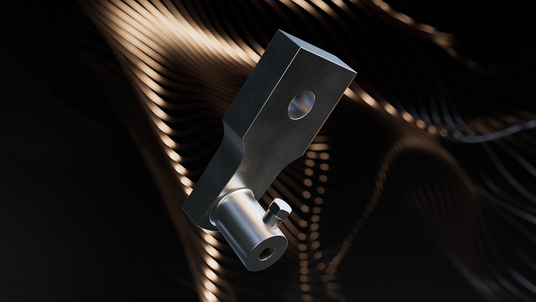

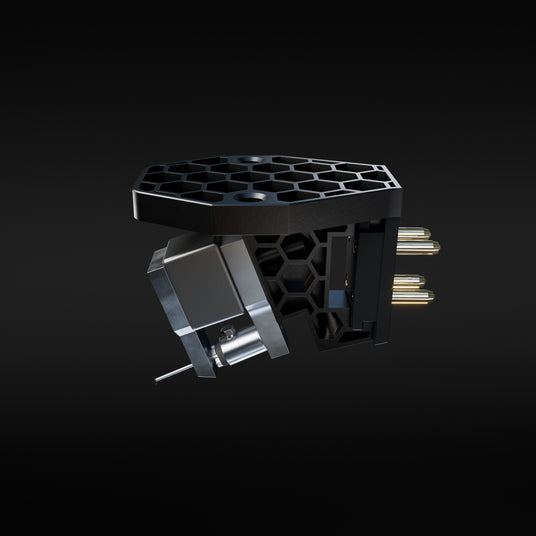

Maximum Magnetic Efficiency

Magnet system

The MC X Series introduces a newly developed magnet system with a one-piece pole cylinder integrated into a rear magnet yoke. Engineered for maximum magnetic efficiency and paired with pure silver coils, this configuration ensures a clean, powerful signal path that elevates overall performance.

Ortofon_MC_X_Cartridge_Optimized_Magnet_System

Precision Engineering for Unmatched Stability

Custom-Developed Rubber Dampers

In-house produced and developed rubber compounds form the core of the MC X Series’ mechanical damping system. Rubber dampers are essential for controlling the physical movement of the coils, maintaining stability, minimizing unwanted vibrations, and enabling precise coil motion. The result is superior tracking, reduced distortion, and musical accuracy.

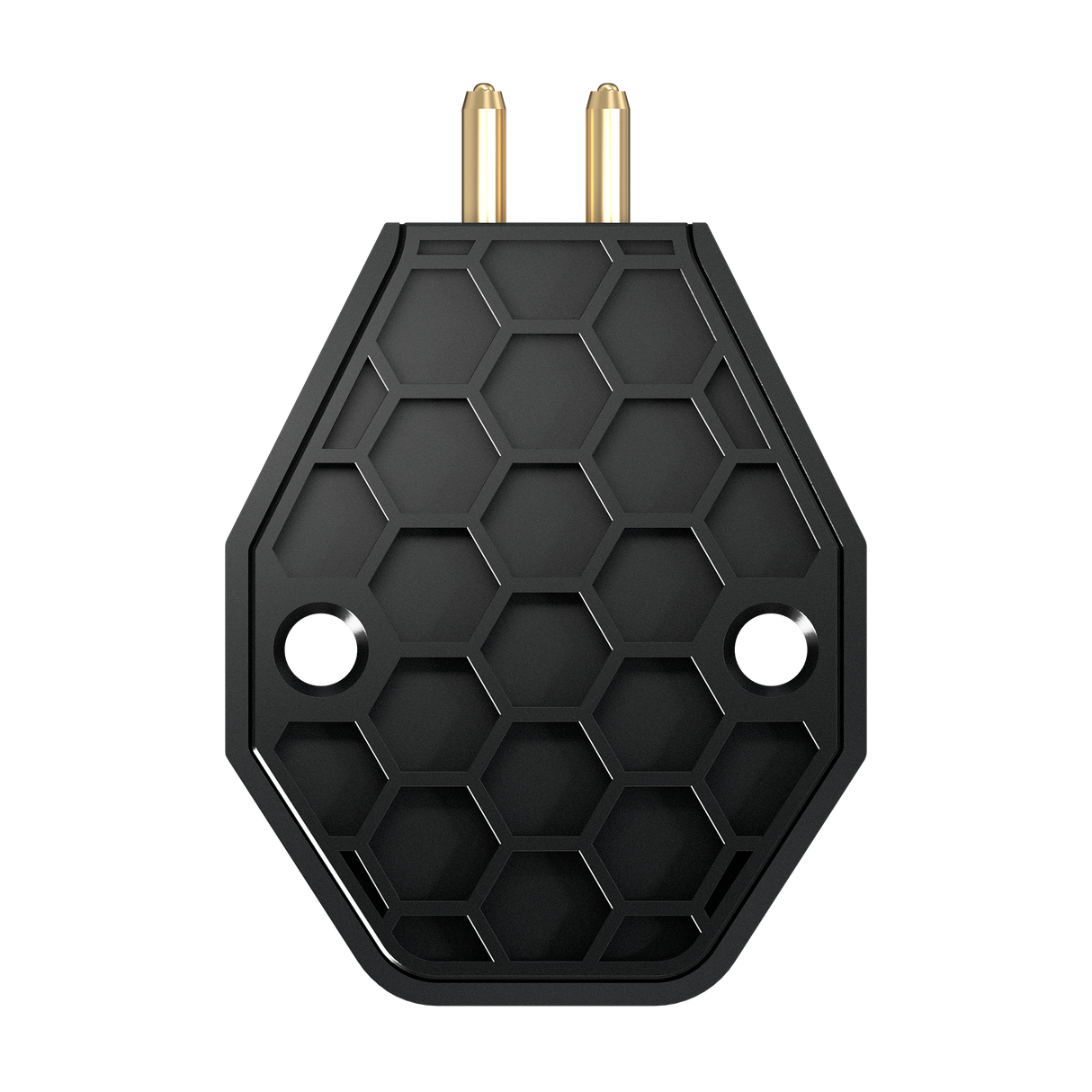

MIM-Molded Honeycomb-Structured Core

Experience the depth.
Hear every detail.

At the core of the MC X Series is an advanced honeycomb-structured stainless-steel frame, created using Metal Injection Molding (MIM) technology. This refined construction ensures superior mechanical stability, providing an ideal foundation for precise and accurate sound reproduction.

After molding and sintering, a Physical Vapor Deposition (PVD) surface treatment is applied to enhance surface appearance and maintain material integrity over time.

MIM-Molded Honeycomb-Structured Core used in Ortofon MC X Phono Cartridge

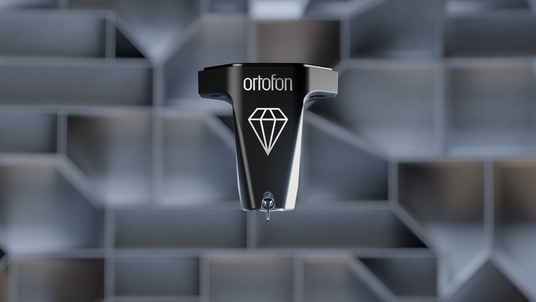

Modern Elegance with Distinctive Design

The Shape of Sound

The MC X Series embodies modern elegance with a distinctive design that seamlessly complements the tonearm. From afar, its silhouette speaks of minimalist refinement; up close, its intricate detailing reveals craftsmanship at every level. True to Ortofon’s signature aesthetic, it’s a sophisticated fusion of form and function.

Specifications
  • Channel balance at 1 kHz
    0.5 dB
  • Output voltage at 1 kHz, 5cm/sec
    0.4 mV
  • Channel separation at 1 kHz
    24 dB
  • Frequency response 20 Hz - 20 kHz
    +/-2 dB
  • Compliance, dynamic, lateral
    13 μm/mN
  • Cantilever material
    Aluminium
  • Stylus type
    Elliptical
  • Stylus tip radius
    r/R 8/18 μm
  • Stylus suspensions
    Ortofon exclusive
  • Coil system
    Quad coils
  • Tracking force, recommended
    2.0 grams
  • Internal impedance, DC resistance
    6 Ω
  • Coil wire material
    High-purity silver
  • Cartridge weight
    8.6 grams
  • Recommended load resistance
    > 50 Ω
    • Download user guide
