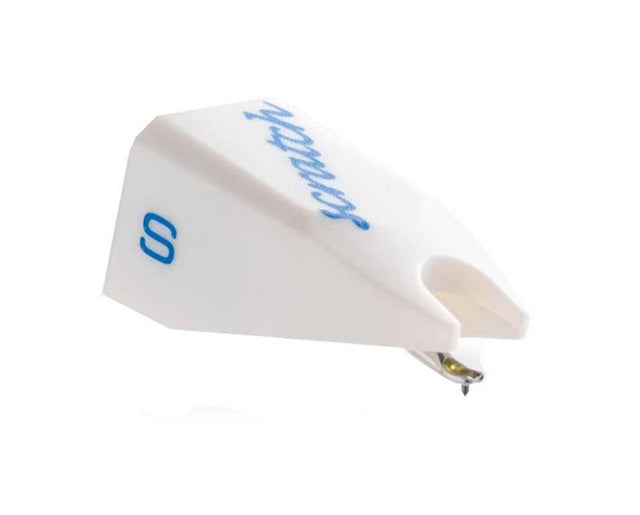

Stylus Scratch White

Stylus Scratch White

The Stylus Scratch White is for the Concorde Scratch White limited edition and compatible with the OM Scratch White.

€55,00
Find nearest dealer

Specifications
  • Channel balance at 1 kHz
    1.5 dB
  • Output voltage at 1 kHz, 5cm/sec
    7 mV
  • Channel seperation at 1 kHz
    25 dB
  • Channel seperation at 15 kHz
    15 dB
  • Frequency response 20 Hz - 20 kHz
    3dB/-2dB
  • Tracking ability at 315Hz at recommended tracking force
    80 μm
  • Compliance, dynamic, lateral
    6 μm/m N
  • Stylus type
    Spherical
  • Stylus tip radius
    R 18 μm
  • Tracking force range
    3.0-5.0 g (30-50 mN)
  • Tracking force, recommended
    4.0 g (40 mN)
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    750 Ohm
  • Cartridge weight
    5 g (stylus = 2 g)
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    450 mH
  • Recommended load capacitance
    200-600 pF
