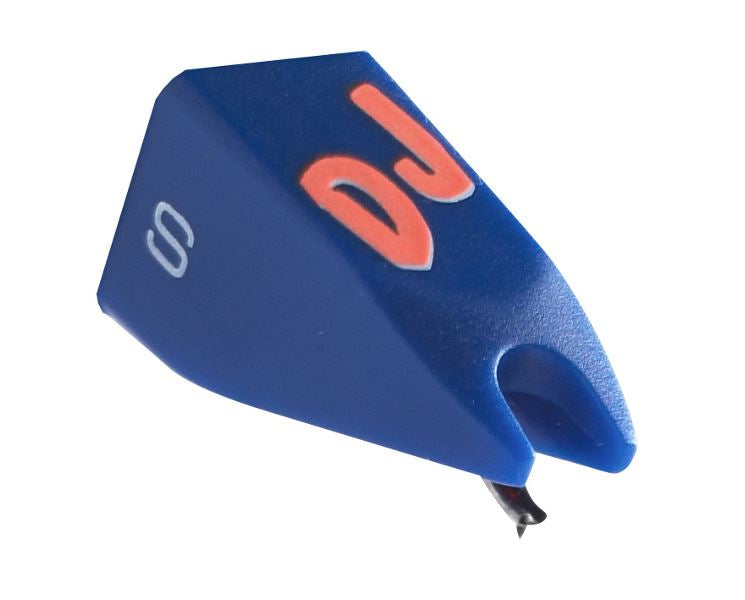

DJ S Replacement stylus

Stylus DJ S

The DJ S is a solid-built cartridge in a blue nylon material. It has a fine spherical stylus and a special developed and extremely balanced cantilever that provides outstanding rigidity.

Not only does the cartridge have a most sufficient tracking ability, it is also nearly unbreakable and provides the DJs with the most needed stringency. Furthermore, it equals very low record wear, an advantage for the busy DJ. The DJ series has been known to many as the "jack of all trades," with improved tracking, alongside accurate sound reproduction. Featuring a low wear stylus design, the DJ provides excellent groove handling, even with less weight applied.

The DJ series of cartridges are great for any style of music, and have been a favored choice of DJs around the world!

€55,00

Specifications

  • Channel balance at 1 kHz
    2 dB
  • Output voltage at 1 kHz, 5cm/sec
    6 mV
  • Channel seperation at 1 kHz
    23 dB
  • Channel seperation at 15 kHz
    15 dB
  • Tracking ability at 315Hz at recommended tracking force
    80 μm
  • Compliance, dynamic, lateral
    9 μm/m N
  • Stylus type
    Spherical
  • Stylus tip radius
    R 18 μm
  • Tracking force range
    2.0-4.0 g (20-40 mN)
  • Tracking force, recommended
    3.0 g (30 mN)
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    750 Ohm
  • Cartridge weight
    18.5 g
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    450 mH
  • Recommended load capacitance
    200-600 pF
