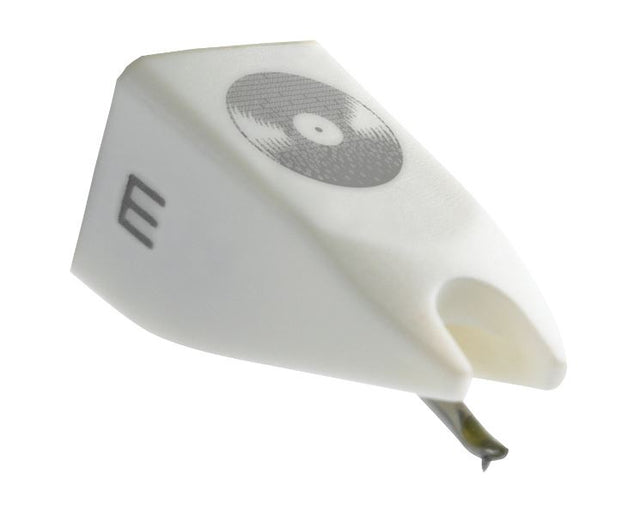

Arkiv Replacement stylus for Vinyl-to-digital transcription

Stylus Arkiv

Growing demand for the ability to transcribe vinyl to digital formats has led to the creation of the Arkiv cartridge, which is specially designed to deliver optimized sound quality for recording purposes.

The Arkiv features a Special Elliptical stylus for more detailed sound reproduction and extended high-frequency response. It excels in providing clear and accurate sound reproduction, as well as remarkable stereo imaging, making it perfectly suited for sampling, transcription, and various other professional applications.

€69,00

Specifications

  • Channel balance at 1 kHz
    2 dB
  • Output voltage at 1 kHz, 5cm/sec
    6 mV
  • Channel seperation at 1 kHz
    23 dB
  • Channel seperation at 15 kHz
    15 dB
  • Frequency response 20 Hz - 20 kHz
    +/- 2 dB
  • Tracking ability at 315Hz at recommended tracking force
    80 μm
  • Compliance, dynamic, lateral
    9 μm/m N
  • Stylus type
    Special Elliptical
  • Stylus tip radius
    r/R 13/25 μm
  • Tracking force range
    2.0-4.0 g (20-40 mN)
  • Tracking force, recommended
    3.0 g (30 mN)
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    750 Ohm
  • Cartridge weight
    stylus = 1 g
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    450 mH
  • Recommended load capacitance
    200-600 pF
