The SPU Classic G MkII is known for its dynamic and powerful sound reproduction

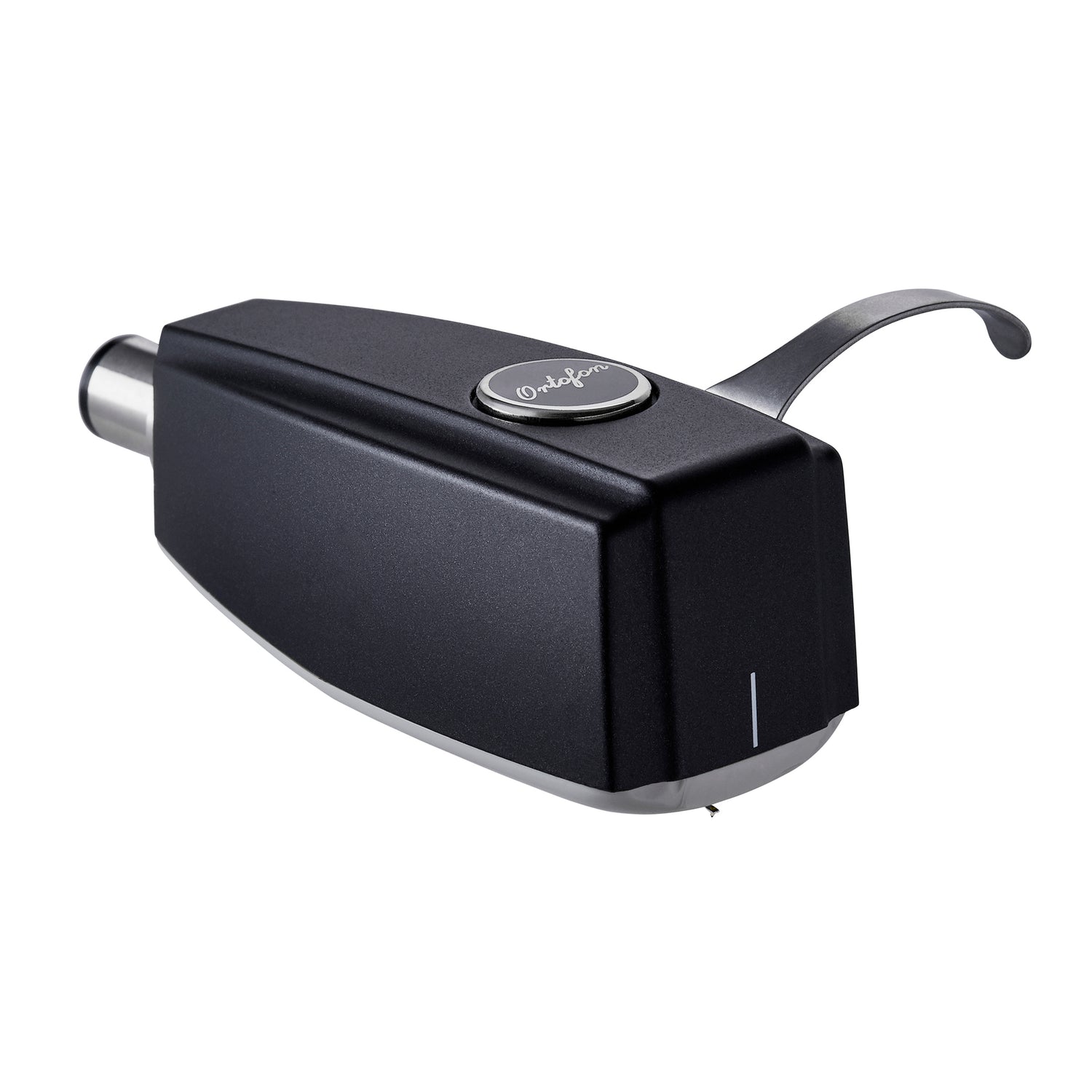

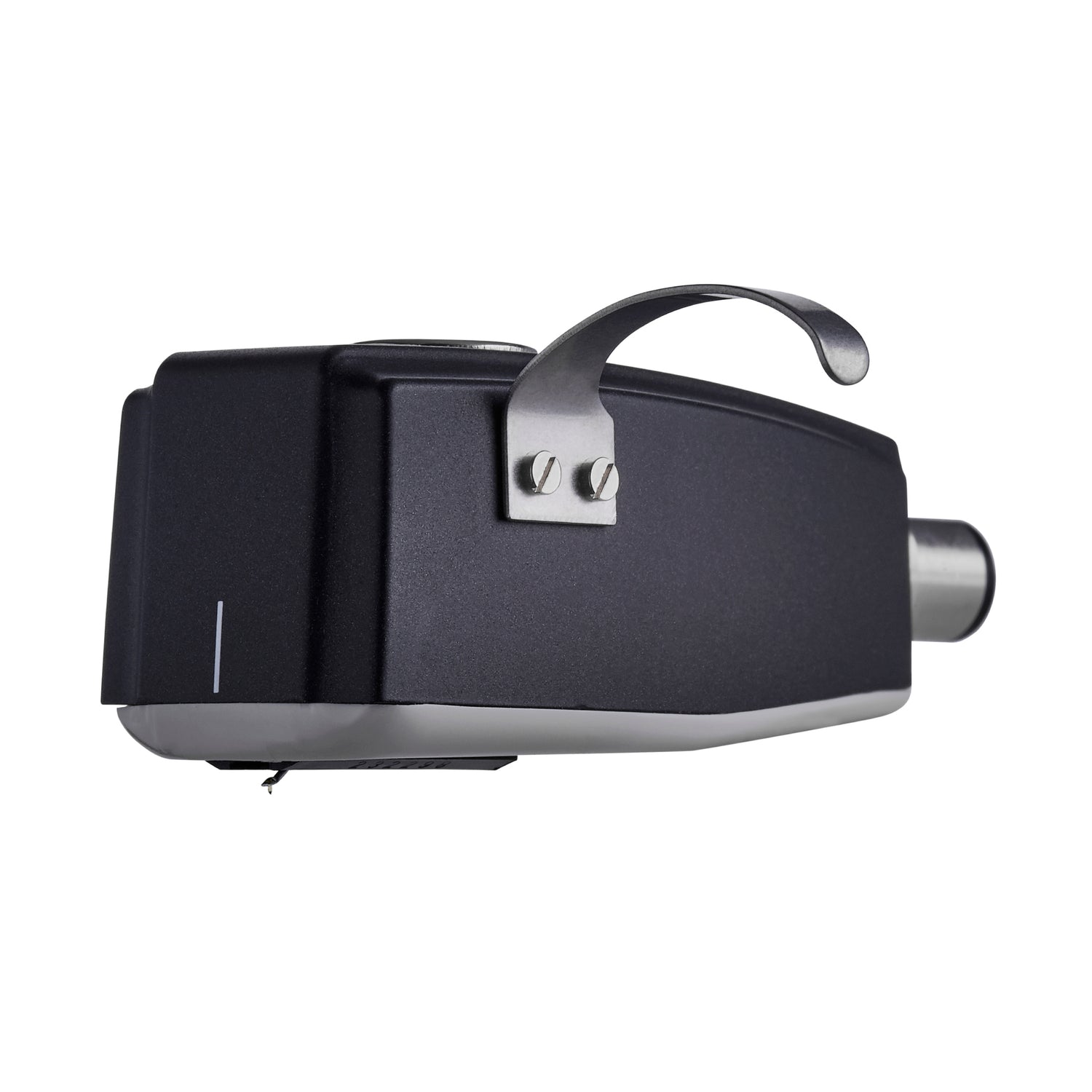

SPU Classic G MKII

The SPU Classic series embodies the essence of the original Moving Coils and are a perfect solution for the playback of early and modern and contemporary stereo recordings.

The SPU Classic G MkII is a Moving Coil cartridge with an 18 µm spherical stylus profile.

Variants

€1.199,00

Free Shipping on orders over €80

Dynamic and powerful sound reproduction

Stylus

The SPU Classic series is known for its dynamic and powerful sound reproduction, without any roughness, minimum of intermodulation distortion, and a splendid channel separation, the images being firm and positive.

The SPU Classic G MkII is a Moving Coil cartridge with an 18 µm spherical stylus profile.

Specifications

Channel balance at 1 kHz

1 dB
Output voltage at 1 kHz, 5cm/sec

0.2 mV
Channel separation at 1 kHz

20 dB
Frequency response 20 Hz - 20 kHz

3/- 3 dB
Tracking ability at 315 Hz

60 µm
Compliance, dynamic, lateral

8 µm/mN
Stylus type

Nude Spherical
Stylus tip radius

R 18 µm
Tracking force range

3.0-5.0 g (30-50 mN)
Tracking force, recommended

4.0 g (40 mN)
Tracking angle

20°
Internal impedance, DC resistance

2 ohm
Recommended load impedance

10 ohm
Coil wire material

High Purity Copper (OFC)
Cartridge body material

Ground wood and resin composite
Cartridge colour

Black matte
Cartridge weight

28 g

Download user guide

Download brochure

Cartridge Dimensions

Open Dimensions Chart

Everything you need for your setup

Seeking an enhanced experience?

SPU Classic G MKII

€1.199,00

Stylus type

Nude Spherical

Cantilever material

N/A

Output voltage

0.2 mV

Channel seperation

20 dB

Coil wire material

High Purity Copper (OFC)

Coil system

High Purity Copper (OFC) Coil Wire

Cartridge body material

Ground wood and resin composite

Mounting types

Bayonet/SME

Weight

28 g

Optimized for

N/A
