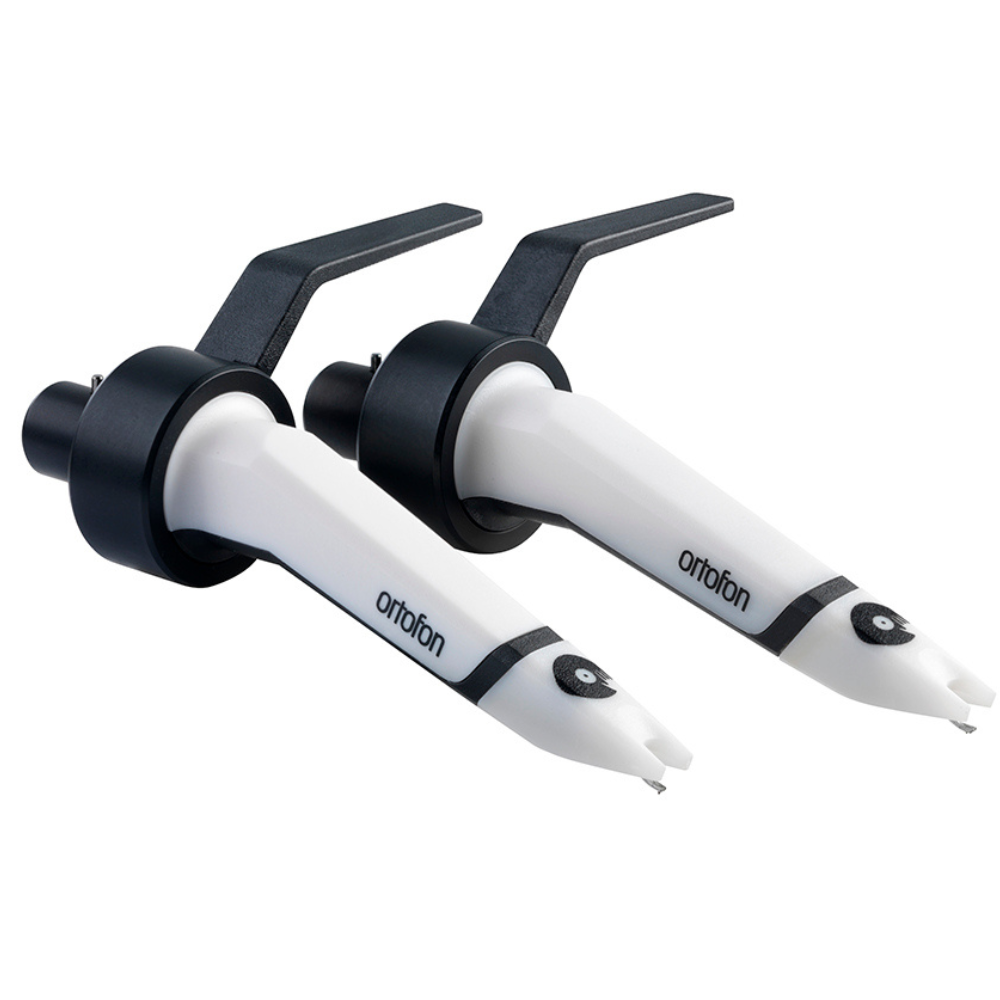

Concorde MKII Twin Scratch

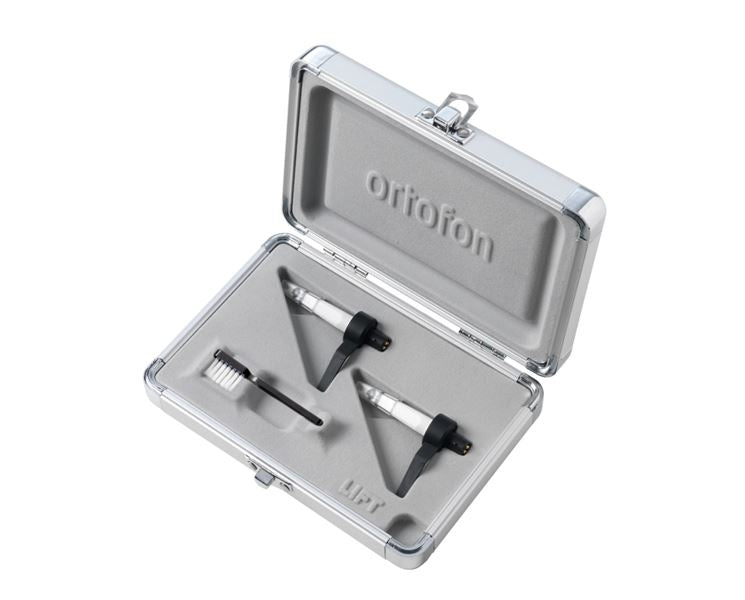

The Concorde TWIN includes two Concorde MKII SCRATCH cartridges with preinstalled styli, all conveniently housed within a Flight case. The Concorde Scratch is intended especially for the disciplines of scratch and back-cueing. It allows turntablist and scratching DJs to achieve new levels of performance with unprecedented tracking ability and extra high output.

Variants

€289,00
Find nearest dealer
OverviewFeaturesReviewsSpecifications

For maximum scratch performance

New levels of performance

Stylus

DJs prefer spherical styli, as they preserve more of the groove over back-cueing and scratching. For DJs that require increased tracking ability, the SCRATCH is up to the task. The Scratch has a supreme ability to trace the grooves of the records and is tailored specifically for scratch.

Powerful 10 mV Output for explosive Sound

Output

Due to its very high output 10 mV, it is perfect for scratch of all music with deep bass frequences. With solid bass reproduction and extended highs, the SCRATCH is great for any style, providing energetic sound. Maximum scratch performance guaranteed!

Scratch Routine by DJ CHELL

Awesome freestyle
with the Scratch

Multiple Russian DMC Champion DJ CHELL, freestyling with the Concorde Scratch MKII. The Scratch has been personalized with a yellow fingerlift.

Specifications
  • Channel balance at 1 kHz
    1 dB
  • Output voltage at 1 kHz, 5cm/sec
    10 mV
  • Channel seperation at 1 kHz
    22 dB
  • Channel seperation at 15 kHz
    15 dB
  • Tracking ability at 315Hz at recommended tracking force
    120 μm
  • Compliance, dynamic, lateral
    14 μm/m N
  • Stylus type
    Spherical
  • Stylus tip radius
    R 18 μm
  • Tracking force range
    3 - 5 g
  • Tracking force, recommended
    4 g
  • Internal impedance, DC resistance
    1200 Ohm
  • Cartridge weight
    18,5 g
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    850 mH
  • Recommended load capacitance
    200-400 pF
  • Replacement stylus
    Stylus CC MKII Scratch
    • Download userguide
    Download brochure/data sheet
