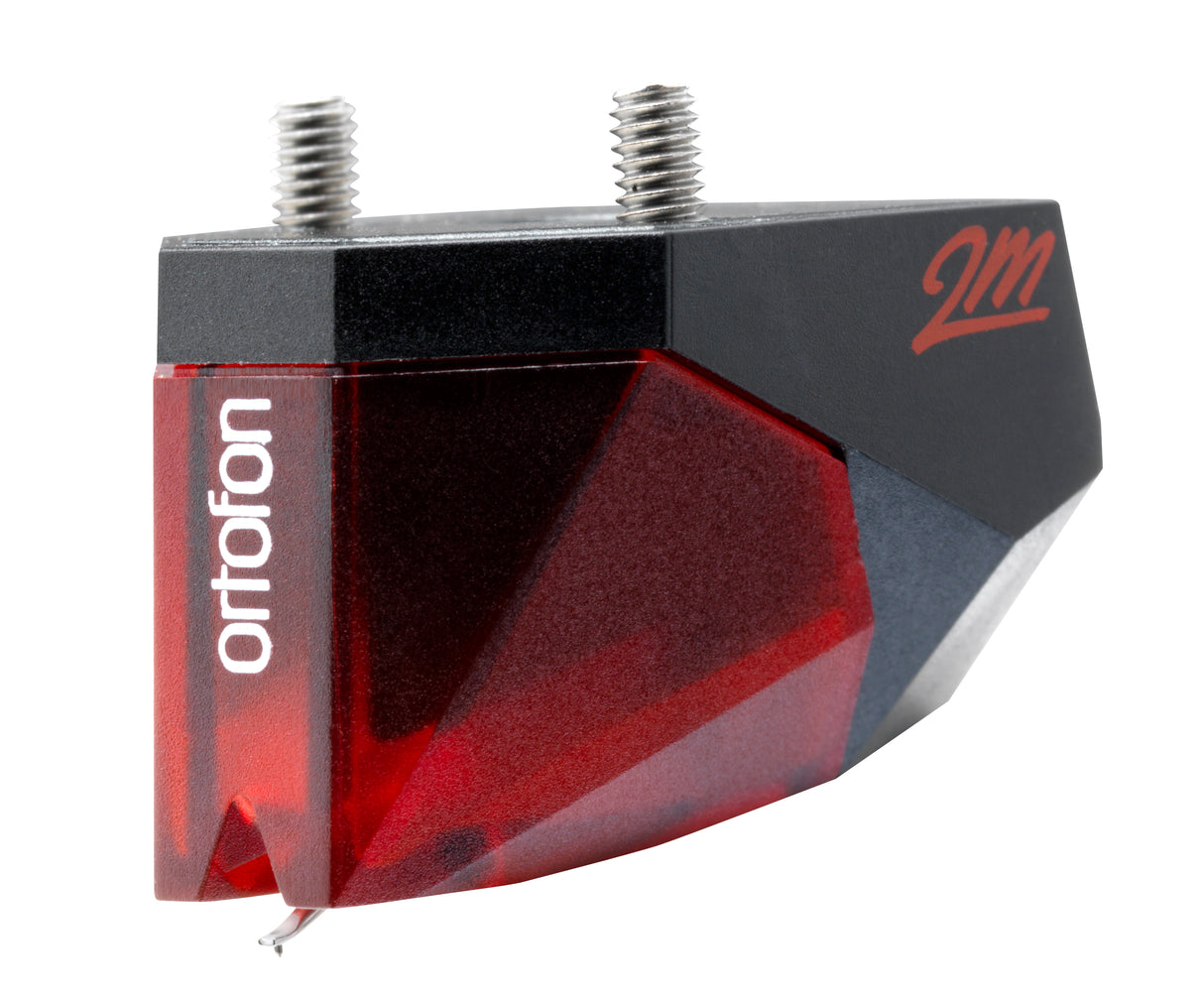

2M Red Verso

The 2M Red Verso model is an alternative product for bottom mount headshells. With the 2M Red you will hear the music come to life on its own terms. It is like taking a step into the music itself. This is our entry-level cartridge in the series, but what an entry.

Variants

€119,00
Find nearest dealer
OverviewFeaturesReviewsSpecifications

2M Red Verso

Step into
the music

Taking a step into music itself

Accuracy level

Remember when you fell in love with music? The 2M Red will rekindle that flame and make music matter again. From the moment the diamond tipped needle
hits the groove you feel it. With the 2M Red, you will hear the music come to life on its own terms. It is like taking a step into the music itself. This is our entry-level cartridge in the series, but what an entry.

Universal fit

Compatibility

The 2M Series is designed for easy cartridge mounting, weight, and size to fit the most common turntables today. The 2M Series are available in four different product variant configurations: the 2M for most common turntables on the market; the 2M Premounted, for customers who wish direct and easy mounting and replacement on their S-shaped tonearm; the 2M Verso, for bottom mount headshells; and the 2MR, which is designed cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.

Split pole pin technology

Features

The 2M Red features Ortofon’s very own invention: the split pole pins with a copper wire that gives you a sound reproduction so precise only your heart dares skip a beat.

For every phase of your musical expedition

Exploring the lineup

The 2M series is built on our philosophy of accuracy in sound. All our experience, know-how, technology, and innovation has gone into making it the series that lets you hear the music the way the artist intended. In every piece of every cartridge, we strive for perfection, and when the technology can’t deliver the quality we want - we invent something that can. To ensure the highest of quality in our product we keep everything close. All our cartridges are designed and crafted right here in Denmark.

The 2M Series is developed in conjunction with the Danish Industrial designer Møller Jensen Design. Inspired by the facets of a diamond, whose contours gracefully trace the grooves on a record’s surface, the 2M’s handsome elegance establishes a great combination of form and functionality.

Hear the music come to life

Output

The engine provides an increased output of 5.5 mV, an optimized sound reproduction, and a high level of sonic accuracy. With the 2M Red, you will hear the music come to life on its own terms. It is like taking a step into the music itself. This is our entry-level cartridge in the series, but what an entry.

How to replace M2.0 mm screws on 2M Red Verso

Replacement guide

  1. Remove the stylus with the stylus protection guard from the cartridge body to avoid damaging the diamond.
  2. Using the Torx 8 key, unscrew the black screw from the Verso top plate.
  3. Gently detach the top plate by pulling the screws.
  4. Remove the two countersunk screws from the top plate.
  5. Insert the two M2.0 mm screws in the top plate.
  6. Attach the top plate to the cartridge body by flipping it 180 degrees.
  7. Mount the black screw in the top plate and tighten with appropriate force.
  8. Mount the cartridge on the tonearm using the enclosed tool.
  9. Mount the stylus with the stylus protection guard on the cartridge body.

Hi-Fi News October 2008

“… a pleasing ambience ...
… intimate, trembling quality ...
… bass in proportion ...
… good detail ...
… realistic without going into hardness ...
… sense of space even in the climaxes ...“

Steve Harris and Paul Miller

Hi-Fi News

The Audio Beat

“... The 2M line has become a de facto reference for moving-magnet cartridges ... It is due to both the sound quality of the various 2M models as well as the wide price range across the line ... the 2M Red is far more forgiving than the 2M Black but also less involving ...“

Marc Mickelson

The Audio Beat

Specifications
  • Channel balance at 1 kHz
    1.5 dB
  • Output voltage at 1 kHz, 5cm/sec
    5.5 mV
  • Channel seperation at 1 kHz
    22 dB
  • Channel seperation at 15 kHz
    15 dB
  • Frequency response 20 Hz - 20 kHz
    3 / - 1 dB
  • Tracking ability at 315Hz at recommended tracking force
    70 µm
  • Compliance, dynamic, lateral
    20 µm/mN
  • Stylus type
    Elliptical
  • Stylus tip radius
    r/R 8/18 µm
  • Tracking force range
    1.6-2.0 g (16-20 mN)
  • Tracking force, recommended
    1.8 g (18 mN)
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    1.3 kOhm
  • Cartridge colour
    Black/Red
  • Cartridge weight
    16.7 g
  • Premounted cartridge weight
    16.7 g
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    700 mH
  • Recommended load capacitance
    150-300 pF
