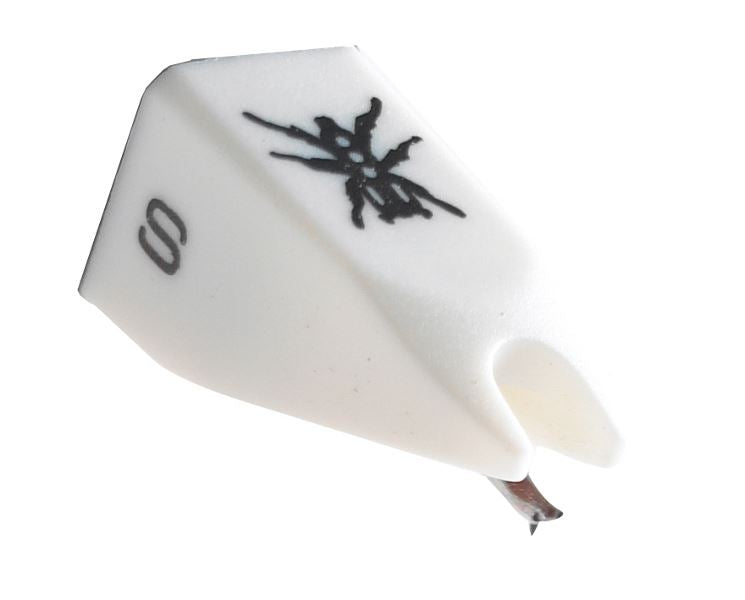

Q.Bert Replacement Stylus

Stylus Q.Bert

Concorde Q.Bert co-designed by DJ Q.Bert for scratch and back-cueing.

High tracking ability, unsurpassed handling.
Ultra high output!
Low wear characteristics that literally put it in a class of its own.

€59,00

Q.Bert Replacement Stylus

The Concorde Q.Bert co-designed by DJ Q.Bert for scratch and back-cueing.

• High tracking abilityunsurpassed handling

• Ultra high output!

• Low wear characteristics that literally put it in a class of its own

Turntablists and mix DJs alike will appreciate the strong output of this cartridge, coupled with unrivaled tracking ability and sonic characteristics. The Q.Bert features a more subdued high-end, which helps to minimize surface noise from worn vinyl, and an accentuated mid-range to help bring scratching to the front of the sound stage.

The Q-Bert has a supreme ability to trace the grooves of your records and it is tailored specifically for scratch. Due to its enomous output, it is perfect for scratch of all music with deep bass frequences.

Specifications

  • Channel balance at 1 kHz
    1,5 dB
  • Output voltage at 1 kHz, 5cm/sec
    11 mV
  • Channel seperation at 1 kHz
    22 dB
  • Frequency response 20 Hz - 20 kHz
    3 dB
  • Tracking ability at 315Hz at recommended tracking force
    90 μm
  • Compliance, dynamic, lateral
    12 μm/m N
  • Stylus type
    Spherical
  • Stylus tip radius
    R 18 μm
  • Tracking force range
    2.0-4.0 g (20-40 mN)
  • Tracking force, recommended
    3.0 g (30 mN)
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    1.680 Ohm
  • Cartridge weight
    18.5 g
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    920 mH
  • Recommended load capacitance
    200-400 pF
