The SPU Royal N provides the same sound reproduction properties as the SPU Royal GM series

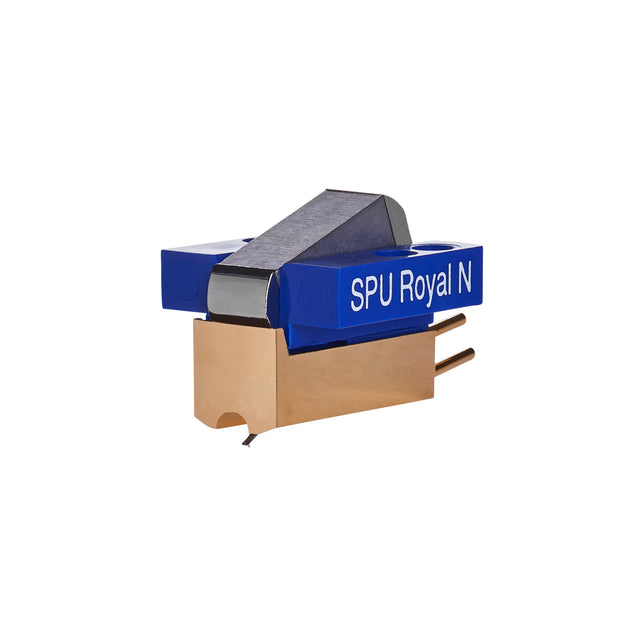

SPU Royal N

The SPU Royal N cartridge, with its half-inch adaptor, provides the ability to mount the unit on standard headshells, as well as in a wider range of tonearms.

€2.399,00
Find nearest dealer
OverviewFeaturesReviewsSpecifications

A purely exquisite listening experience

Features

The SPU Royal N features Electrum coils, consisting of a gold and silver alloy, providing uncolored and precise transmission of armature movements, while the slightly modified damping system makes it possible to reduce VTF and achieves a higher level of linearity.

The addition of Ortofon’s unique Replicant 100 stylus and reduced tip mass ensures open and detailed sound reproduction for a purely exquisite listening experience.

The high purity 6-nines copper wiring ensures impeccable signal transmission and preservation of the finest of microdynamic detail.

Specifications
  • Channel balance at 1 kHz
    1 dB
  • Output voltage at 1 kHz, 5cm/sec
    0.2 mV
  • Channel seperation at 1 kHz
    25 dB
  • Channel seperation at 15 kHz
    20 dB
  • Frequency response 20 Hz - 20 kHz
    1,5/- 0 dB
  • Tracking ability at 315Hz at recommended tracking force
    60 µm
  • Compliance, dynamic, lateral
    8 µm/mN
  • Stylus type
    Nude Ortofon Replicant 100
  • Stylus tip radius
    r/R 5/100 µm
  • Tracking force range
    2.5-3.5 g (25-35 mN)
  • Tracking force, recommended
    3.0 g (30 mN)
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    7 ohm
  • Recommended load impedance
    100 ohm
  • Coil wire material
    Goldplated silver
  • Cartridge weight
    13 g
    • Download userguide
    Download brochure/data sheet
