Ortofon Treasure Trove

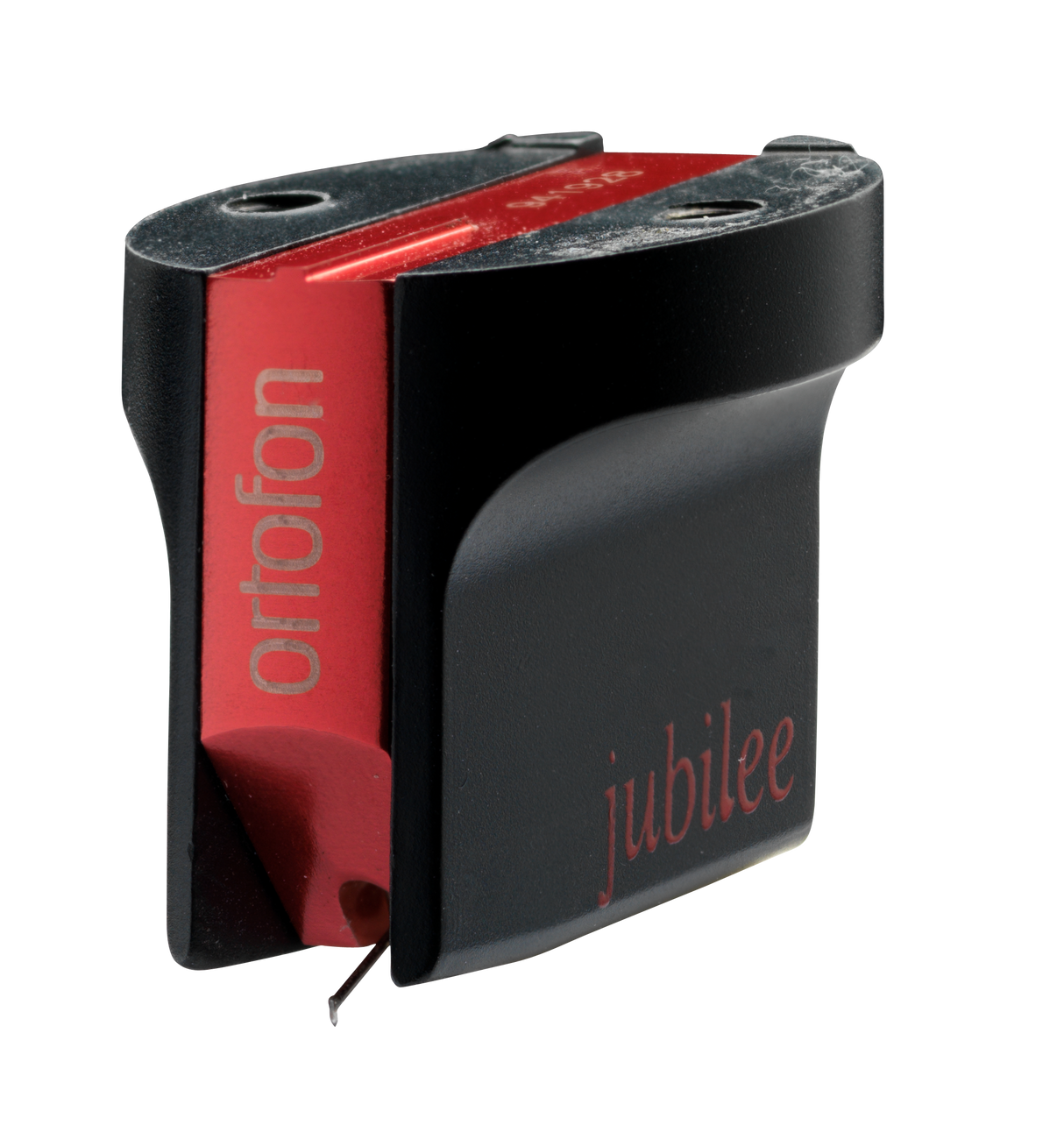

MC Jubilee Refurbished

The Ortofon MC Jubilee was launched to celebrate Ortofon’s 80th anniversary.

The MC Jubilee features a unique exterior design and an interior construction based on numerous technological advances in the service of your listening experience. The cartridge incorporates the Wide Range Damping system controlling the high-and low frequency damping separately. Amazing tonal neutrality, dynamics, and purity of sound of the Ortofon MC Jubilee set new standards for potency, detail, consistency, and sound staging.

The effective mass has been reduced in the stylus/cantilever system by using a very thin boron rod. This material is extremely stiff and even more lightweight compared to aluminum. Additionally, the velocity of sound is almost 3 times higher compared to that of aluminum.

Combined with the Nude high-polished Shibata diamond stylus at the end of the cantilever, we have developed one of the new elements responsible for the new sound: 6-nines (99.9999%) pure silver is used for the coils on the armature.

A high performance MC transformer or MC preamplifier is required to take full advantage of these qualities. Recommended load: 10 Ohms or much higher, unless the ancillary system has bright tendencies.

€1.599,00
Notify me when available

Free Shippingon orders over €80

Ortofon Treasure Trove concept

Discover Hidden Gems

These exclusive pieces, refurbished and rigorously tested, find a new purpose through our Treasure Trove concept. They might be discontinued models or from our current product line, but they all share one thing – the potential to create beautiful music. Each product comes with an Ortofon Test certificate, ensuring its quality and authenticity. Each product from our Treasure Trove comes meticulously packaged.

Refurbished cartridges are housed in sturdy Ortofon cardboard outer boxes, secured on a plastic base, and protected by a clear cover. As a bonus, you'll find an Ortofon stylus carbon brush, a mini screwdriver, and a pair of mounting screws – everything you need for a seamless setup. To ensure fairness and give everyone a chance, there's a limit of one Treasure Trove product per customer. These exclusive offers cannot be combined with other discounts or services.

Specifications

  • Channel balance at 1 kHz
    1 dB
  • Output voltage at 1 kHz, 5cm/sec
    0,34 mV
  • Channel separation at 1 kHz
    27 dB
  • Frequency response 20 Hz - 10 kHz
    + 1,5 / - 0 dB
  • Tracking ability at 315 Hz
    100 µm
  • Compliance, dynamic, lateral
    16 µm/mN
  • Stylus type
    Nude Shibata
  • Stylus tip radius
    r/R 6/50 µm
  • Tracking force range
    2,0-2,5 g (20-25 mN)
  • Tracking force, recommended
    2,3 g (23 mN)
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    5 Ohm
  • Cartridge body material
    Stainless steel/aluminium
  • Cartridge colour
    Red/Black
  • Cartridge weight
    10,5 gram
  • Recommended load capacitance
    > 10 Ohm
