Historical Product

TM 30H, TM20H
and TM14

When Technics approached Ortofon in 1980 with the proposal to develop a series of cartridges exclusively for use with their new range of compact turntables, we willingly agreed. The Technics SL turntables, with their special lightweight linear tracking tonearms, represented an entirely new concept in design and technology.
It was a challenge hardly to be resisted.

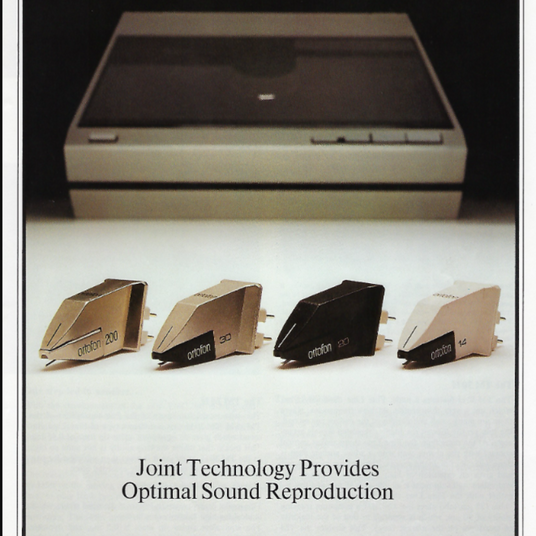

Ortofon set about developing two entirely new magnetic cartridges that could plug directly into the linear tracking arms of this new generation of turntables. The resulting TM 30 H and TM 14 magnetic cartridges set the seal on the Technics/Ortofon joint venture. Later, two new models was added to this special series of cartridges, designed exclusively for Technics: the TM 20 H magnetic cartridge and the Moving Coil TMC 200.

A historical collaboration in cartridge excellence

Pioneering sound innovation

Explore the history of our TM 30 H, TM 20 H, and TM 14 VMS cartridges, including the P-mount models, by downloading our comprehensive product leaflet.

Dive into the full story behind these iconic cartridges and discover the innovative collaboration between Ortofon and Technics. Click here to download the products leaflet and embark on a journey of audio excellence.

Read more

Ortofon OMP 10 Technical data

Technical data VMS 30 MkII VMS 20 MkII VMS 10 MkII VMS 5E MkII VMS 3E MkII
Output voltage at 1000 Hz, 5cm/sec. 5.0 mV 5.0 mV 5.0 mV 6 mV 6 mV
Channel balance at 1 kHz 2.0 dB 2.0 dB 2.0 dB 2.0 dB 2.0 dB
Channel separation at 1 kHz 27 dB 25 dB 25 dB 20 dB 20 dB
Frequency response 20-20.000 Hz 20-20.000 Hz 20-20.000 Hz 20-20.000 Hz 20-20.000 Hz
Tracking ability (315Hz, lateral) 90 µm 70 µm 65 µm 55 µm 50µm
Tracking force range 10 - 16 mN
(1.0 - 1.6g)		 8 - 12 mN
(0.8 - 1.2g)		 17 - 23 mN
(1.7 - 2.3g)		 17 - 23 mN
(1.7 - 2.3g)		 17 - 23 mN
(1.7 - 2.3g)
Recommended tracking force  13 mN (1.3g) 10 mN (1.0g) 20 mN (2.0g) 20 mN (2.0g) 20 mN (2.0g)
Compliance, dynamic (lateral) 22 µm/mN 25 µm/mN 15 µm/mN 20 µm/mN 15 µm/mN
Stylus type Fine Line Nude Nude Elliptical Elliptical Elliptical Elliptical
Tracking angle (vertical) 20° 20° 20° 20° 20°
DC resistance 800 Ohm 800 Ohm 800 Ohm 800 Ohm 800 Ohm
Inductance 600 mH 600 mH 600 mH 600 mH 600 mH
Recommended load resistance 47 kOhm 47 kOhm 47 kOhm 47 kOhm 47 kOhm
Recommended load capacitance 400 pF 400 pF 400 pF 400 pF 400 pF
Cartridge weight 5 g 5 g 5 g 5 g 5 g
