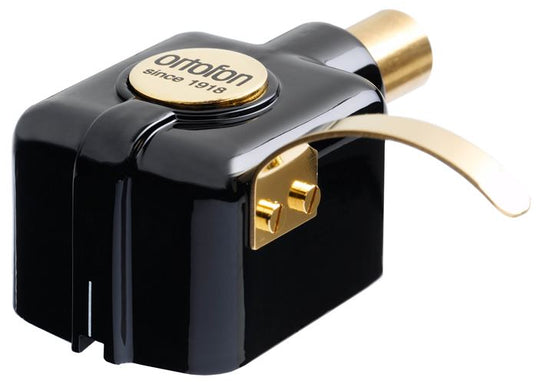

Ortofon SPU Synergy A

The SPU Synergy A modernizes the classic SPU design with a number of optimizations designed for optimum compatibility and sonic purity. The SPU Synergy features a wood-based housing

and has a revised generator system which allows for a maximum output of 500 µV, relaxing the requirement for high gain transformer or active preamplification systems. While still making use of a highly polished Nude Elliptical stylus, the stylus tip mass has been reduced significantly, resulting in reduced VTF and higher tracking ability. The SPU Synergy A provides all of the sonic capabilities of the legendary SPU Synergy GM, but in a short-shell format for use with a variety of tonearms which require a cartridge with a shorter overhang.

SPU Synergy A Technical data

Output voltage at 1000 Hz, 5cm/sec.  -   0,5 mV
Channel balance at 1 kHz   -  < 1,5 dB
Channel separation at 1 kHz   -  > 23 dB
Channel separation at 15 kHz   -  > 15 dB
Frequency range at - 3dB   -  20-30.000 Hz
Frequency response  -   20-20.000 Hz ± 2 dB
Tracking ability at 315Hz at recommended tracking force   -   70 µm
Compliance, dynamic, lateral  -   8 µm/mN
Stylus type   -  Nude elliptical
Stylus tip radius  -   r/R 8/18 µm

Tracking force range  -   2,5-3,5 g (25-35 mN)
Tracking force, recommended   -  3,0 g (30 mN)
Tracking angle   -  20°
Internal impedance, DC resistance  -   2 Ohm
Recommended load impedance  -   10 - 50 Ohm
Cartridge body material  -   Bakelite
Coilwire material   -  High Purity Copper (OFC)
Cartridge colour  -   Shiny Black
Cartridge weight  -   29 g
