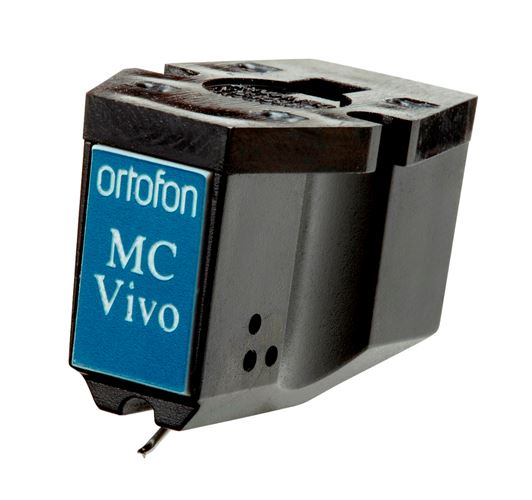

MC Vivo Blue Technical data
MC Vivo Blue Technical data
Output voltage at 1000 Hz, 5cm/sec. - 0,5 mV
Channel balance at 1 kHz - < 1,5 dB
Channel separation at 1 kHz - > 23 dB
Channel separation at 15 kHz - > 15 dB
Frequency range at - 3dB - 20-30.000 Hz
Frequency responce - 20-20.000 Hz ± 2 dB
Tracking ability at 315Hz at recommended tracking force - > 70 µm
Compliance, dynamic, lateral - 13 µm/mN
Stylus type - Nude Elliptical on Alu cantilever
Stylus tip radius - r/R 8/18 µm
Tracking force range - 1,6-2,0 g (16-20 mN)
Tracking force, recommended - 1,8 g (18 mN)
Tracking angle - 20°
Internal impedance, DC resistance - 6 Ohm
Recommended load impedance - > 10 Ohm
Cartridge body material - Lexan DMX
Cartridge colour - Black
Cartridge weight 7 g
