MC Samba

Ortofon Dance Series - superior sound of Ortofon Moving Coil cartridges

Many have asked the question: Why is the sound of a moving coil cartridge so superior to that of a traditional magnetic? The answer in one word is linearity. The patented Ortofon low-impedance, low-output design is inherently linear over the entire audible range. This, coupled with unequalled tracking ability and unique diamond profiles, combines to deliver a sound previously deemed unattainable. The MC Tango, MC Samba, and MC Salsa are a direct result of our endeavours. The MC Tango is the Dance series entry level cartridge with a very high performance ratio. The MC Tango features an elliptical diamond and the output is 0.5 mV.

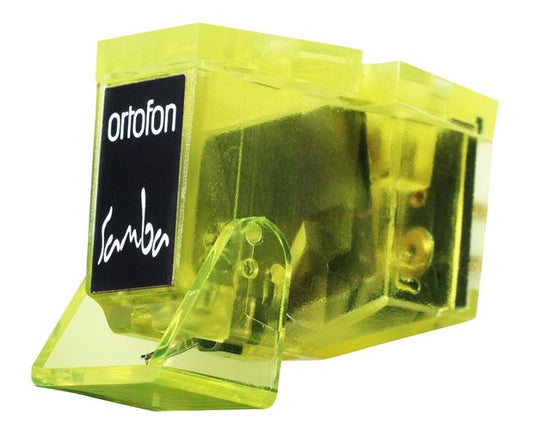

Ortofon MC Samba phono cartridge

The MC Samba has been created to provide a high level of compatibility with virtually any tonearm and will yield excellent results with any system. The MC Samba is a great foray into the world of low output Moving Coil cartridges, featuring a nude elliptical stylus.

MC Samba Technical data

Output voltage at 1000 Hz, 5cm/sec.   -  0,3 mV
Channel balance at 1 kHz  -   < 1 dB
Channel separation at 1 kHz   -  > 25 dB
Channel separation at 15 kHz   -  > 15 dB
Frequency range at - 3dB   -  20-30.000 Hz
Tracking ability at 315Hz at recommended tracking force  -    > 70 µm
Compliance, dynamic, lateral  -   14 µm/mN
Stylus type  -   Nude elliptical
Stylus tip radius   -  r/R 8/18 µm

Tracking force range   -  1,3-1,8 g (13-18 mN)
Tracking force, recommended   -  1,5 g (15 mN)
Tracking angle   -  20°
Internal impedance, DC resistance  -   6 Ohm
Recommended load impedance   -  > 10 Ohm
Cartridge body material  -   Noryl
Cartridge colour  -   Yellow transparent
Cartridge weight  -   7 g
