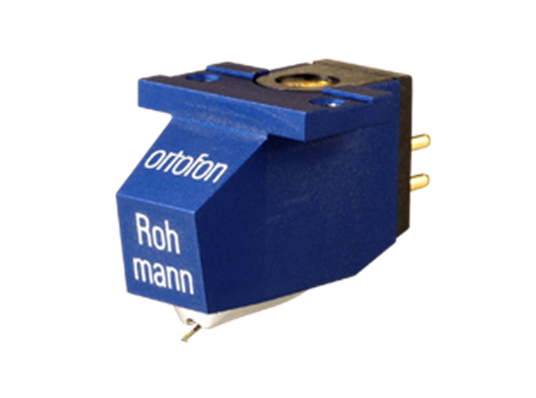

MC Rohmann Technical data
MC Rohmann Technical data
Output voltage at 1000 Hz, 5cm/sec. - 0,25 mV
Channel balance at 1 kHz - < 1,5 dB
Channel separation at 1 kHz - > 25 dB
Channel separation at 15 kHz - > 15 dB
Frequency range at - 3dB - 20-55.000 Hz
Frequency response - 20-20.000 Hz ± 2 dB
Tracking ability at 315Hz at recommended tracking force - 80 µm
Compliance, dynamic, lateral - 12 µm/mN
Stylus type - Nude "Orto Line"
Stylus tip radius - r/R 4,5/100 µm
Tracking force range - 2,2-2,7 g (22-27 mN)
Tracking force, recommended - 2,5 g (25 mN)
Tracking angle - 20°
Internal impedance, DC resistance - 6 Ohm
Recommended load impedance - > 10 Ohm
Cartridge body material - Aluminium, milled from solid block
Cartridge colour - Royal blue
Cartridge weight - 9 g
