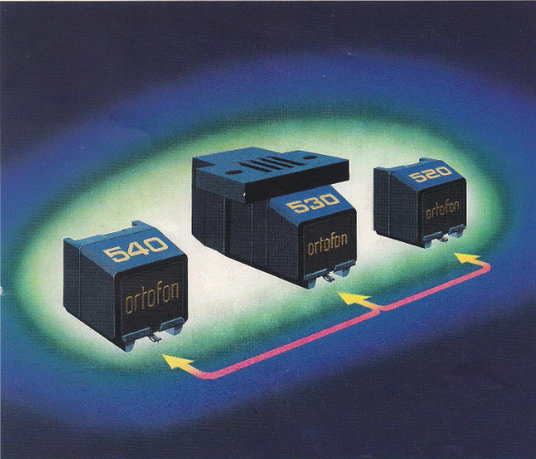

Ortofon Series 500 Moving magnet cartridges

The Ortofon Series 500 was created for music lovers, not just hi-fi enthusiasts. It is designed for individuals who appreciate the intimacy, immediacy, and 'liveness' of real music.

The Series 500 represents the latest result of Ortofon's decades of experience as a leader in the field of magnetic cartridge design. These cartridges incorporate innovative technology that sets new standards for the performance potential of a 'traditional' cartridge.

Read more about the Ortofon Series 500

A unique masterpiece

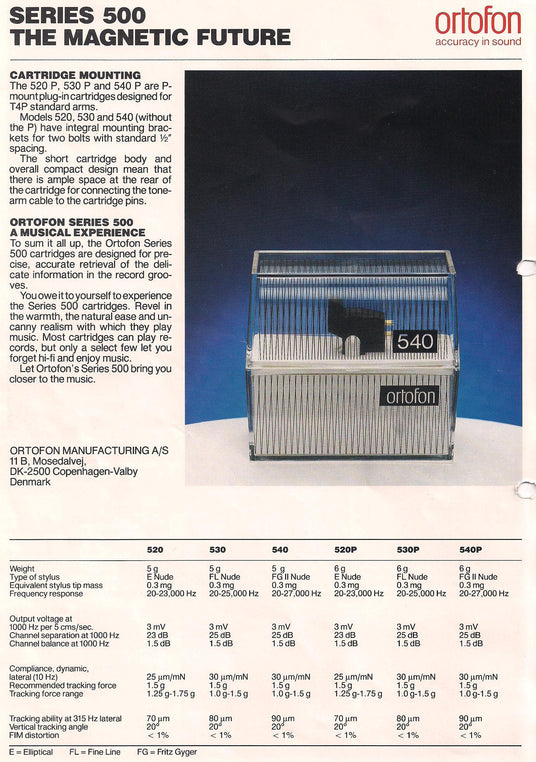

To delve deeper into the innovation behind the Series 500, we invite you to download the product leaflet.

Uncover the intricate details and technological advancements that made the Series 500 a unique masterpiece in the realm of audio excellence.

Read more

Ortofon Series 500 MM cartridges technical data

Technical data 540 / 540P
 530 / 530P 520 / 520P
 510 / 510 P
Output voltage at 1000 Hz, 5cm/sec. > 3.0 mV > 3.0 mV > 3.0 mV > 3.0 mV
Channel balance at 1 kHz < 1.5 dB < 1.5 dB < 1.5 dB < 1.5 dB
Channel separation at 1 kHz > 25 dB > 25 dB > 23 dB > 23 dB
Channel separation at 15 kHz 15 dB 15 dB 15 dB 15 dB
Frequency range at -3 dB 20-27.000 Hz 20-25.000 Hz 20-23.000 Hz 20-23.000 Hz
Frequency response 20-20.000 Hz ± 1.5 dB 20-20.000 Hz ± 1.5 dB 20-20.000 Hz ± 1.5 dB 20-20.000 Hz ± 2 dB
Tracking ability (315Hz, lateral) 90 µm 80 µm 70 µm 70 µm
Compliance, dynamic (lateral) 30 µm/mN 30 µm/mN 25 µm/mN 25 µm/mN
Stylus type Fritz Gyger II Nude Fine Line Nude Elliptical Nude Elliptical
Stylus tip radius r/R 5/70 µm r/R 8/40µm r/R 8/18 µm r/R 8/18 µm
Tracking force range     1,25-1,75 g
(12,5-17,5 mN)		 1,25-1,75 g
(12,5-17,5 mN)		 1.25-1.75 g
(12.5-17.5 mN)		 1.25-1.75 g
(12.5-17.5 mN)
Tracking force, recommended 1.5 g (1.5 mN) 1.5 g (1.5 mN) 1.5 g (15 mN) 1.5 g (15 mN)
Tracking angle (vertical) 20°  20° 20° 20°
Internal resistance 100 Ohm 100 Ohm 100 Ohm 100 Ohm
Inductance 550 mH 550 mH 550 mH 550 mH
Recommended load resistance 47 kOhm 47 kOhm 47 kOhm 47 kOhm
Recommended load capacitance 100-400 pF 100-400 pF 100-400 pF 100-400 pF
Cartridge colour, Body/Stylus Black/Black Black/Black Black/Black Black/Black
Cartridge weight 5 g/6 g 5 g/6 g 5 g/6 g 5 g/6 g
Replacement stylus 540 530 520 510
