The best sound quality achievable for traditional vinyl playback

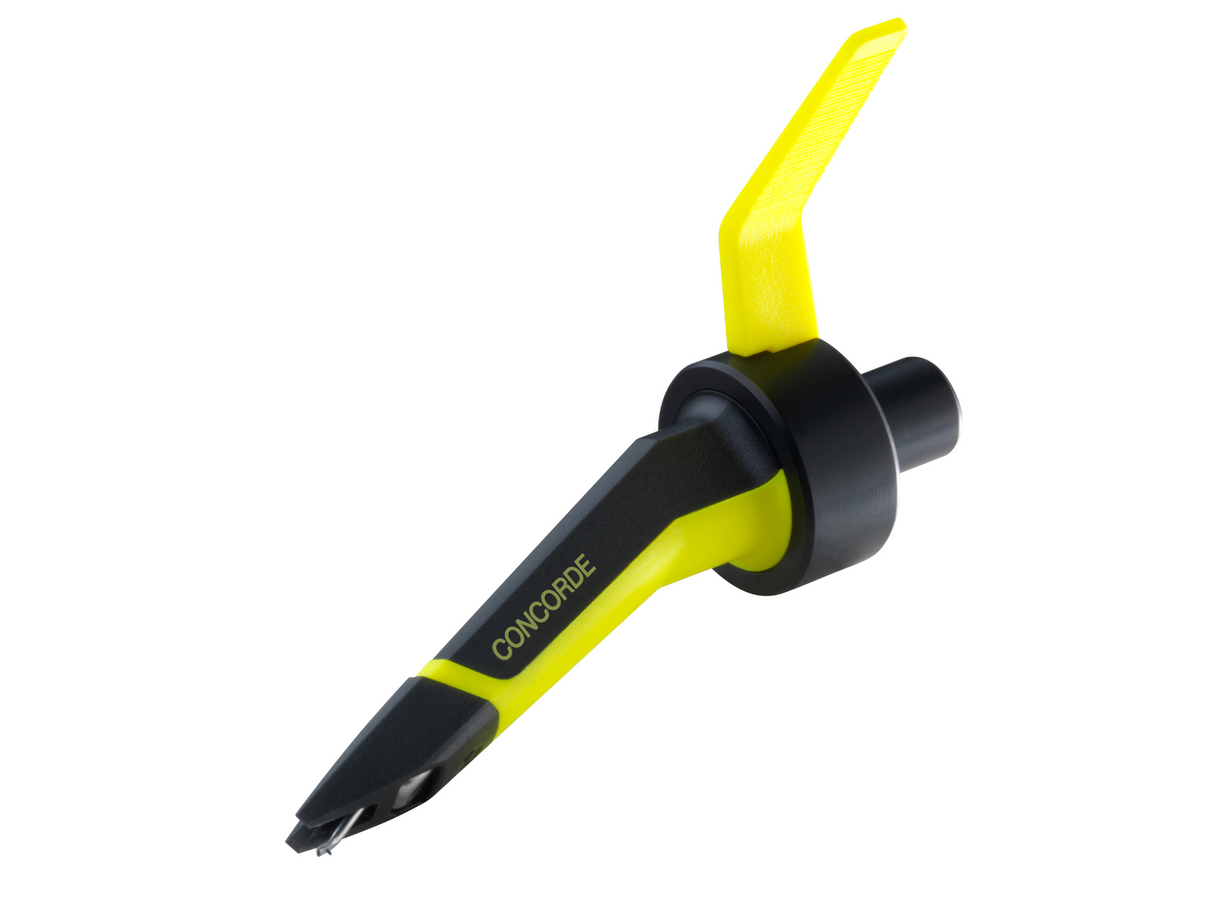

Concorde MKII Club

The Concorde CLUB delivers exceptional sound quality and an elevated output voltage for a powerful, energetic audio experience. With its outstanding specifications and remarkable sound profile, the CLUB stands as a prime selection for Club DJs across various settings – be it the studio, broadcast, or club venues.

Variants

€169,00
Find nearest dealer

Holiday Shipping Notice: Please note, orders placed after December 19 (CET) will be shipped starting January 6 due to our holiday closure.

OverviewFeaturesReviewsSpecifications

The best sound quality for vinyl playback

Special Elliptic stylus

Stylus

The CLUB features a Special Elliptic stylus that allows for detailed sound quality. The Special Elliptic stylus fits better in the groove and has more contact area with the groove itself, extracting more intricate details, than is possible with a Spherical diamond.

Captivating performances in vibrant live settings

Output

The Concorde CLUB presents outstanding sound quality and an increased output of 8 mV, translating into a robust and vibrant audio performance. This heightened output voltage significantly reduces the demand for preamp gain, resulting in a cleaner and more faithful sound reproduction. Additionally, this attribute minimizes susceptibility to feedback, a particularly advantageous feature when performing in dynamic live environments.

The Concorde CLUB in action

Watch the CLUB in action

The CLUB is also recommended for digitalizing purposes: it provides optimal quality and extracts every last detail from vinyl when transferring vinyl to any digital storage media.

Specifications
  • Channel balance at 1 kHz
    1 dB
  • Output voltage at 1 kHz, 5cm/sec
    8 mV
  • Channel separation at 1 kHz
    25 dB
  • Tracking ability at 315Hz
    100 μm
  • Compliance, dynamic, lateral
    14 μm/m N
  • Cantilever material
    Aluminium
  • Stylus type
    Special Elliptical diamond
  • Stylus tip radius
    r/R 13/25 μm
  • Tracking force range
    2 - 4 g
  • Tracking force, recommended
    3 g
  • Internal impedance, DC resistance
    1000 Ohm
  • Recommended load impedance
    200-600 pF
  • Cartridge weight
    18,5 g
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    650 mH
  • Replacement stylus
    Stylus CC MKII Club
    • Download userguide
    Download brochure/data sheet
