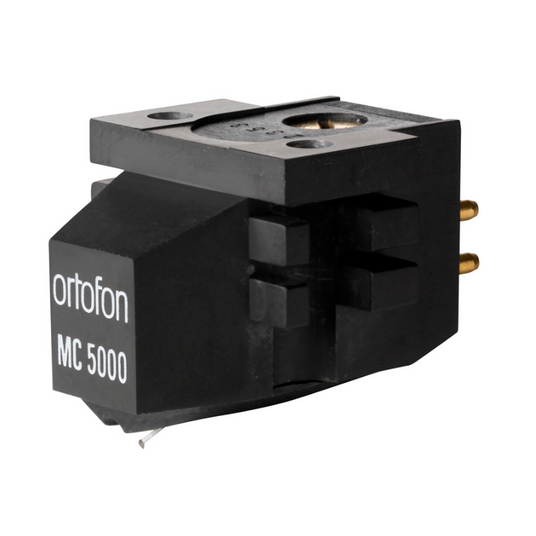

Technische gegevens van de MC 5000 Refurbished
Technische gegevens van de MC 5000 Refurbished
Output voltage bij 1000 Hz, 5 cm/sec. > 0,14 mV
Channel balance at 1 kHz < 0,5 dB
Channel separation at 1 kHz > 25 dB
Frequentiebereik bij -3 dB 5-80.000 Hz
Tracking ability bij 315 Hz en aanbevolen tracking force *) > 90 µm
Compliance, dynamic, lateral - 12 µm/mN
Stylus type - Ortofon Replicant 100
Stylus tip radius - r/R 5/100 µm
Cantilever - Sapphire
Equivalent stylus tip mass - 0,25 mg
*) Typische waarde
Tracking force range - 2,2 - 2,7 g
Tracking force, recommended - 2,5 g
Tracking angle - 20°
Internal impedance, DC resistance - 6,0 ohm
Aanbevolen load impedance > 20 ohm
Internal lead wiring - 7 nines copper
Cartridge body material - Black sapphire
Cartridge weight - 9,5 g
